17. J100

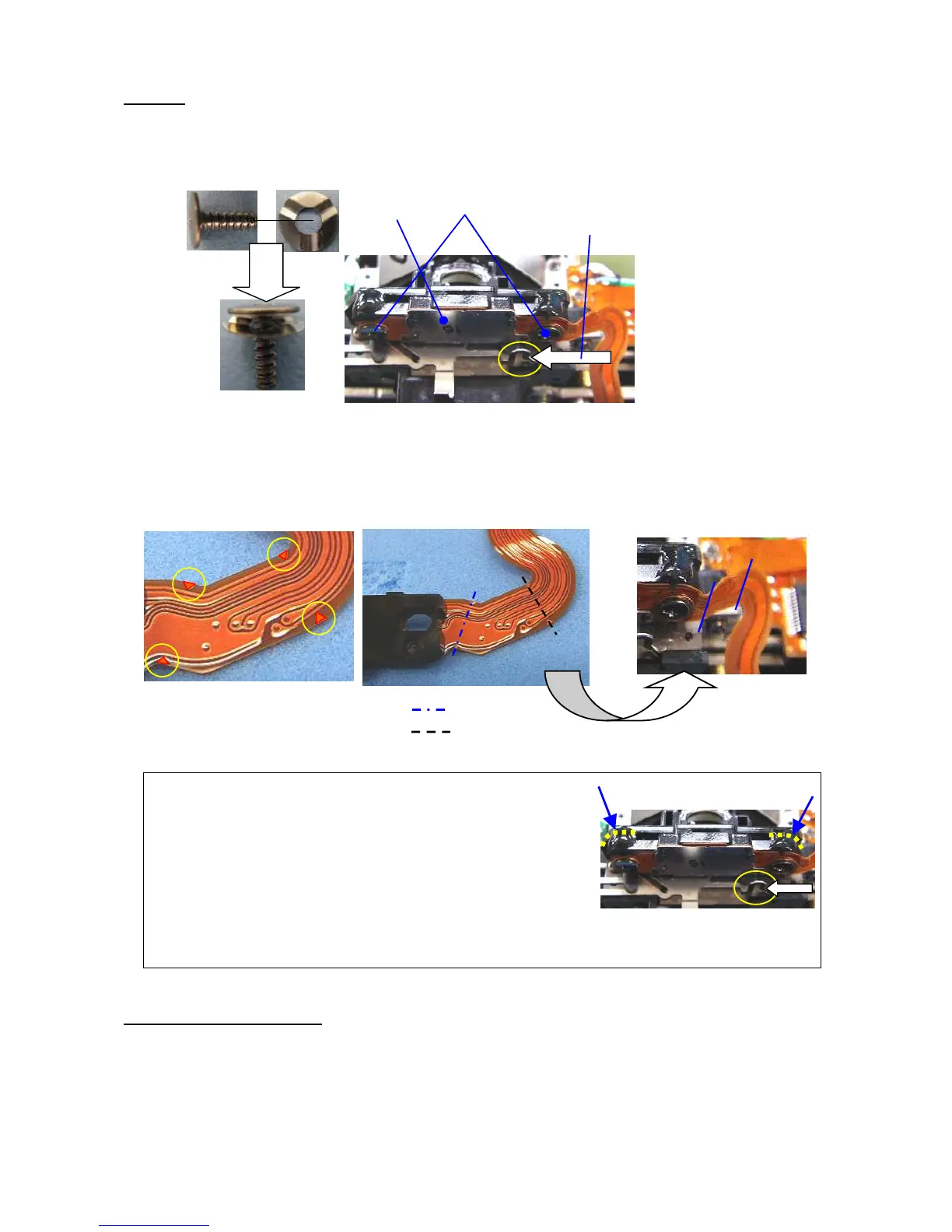

① Set diopter lever at end left side and then install it.
② J100
③ J110, TY-CNL-G1.7x5.0 (Temporary) --- 2 positions
[Caution for replacing J100]
*When replacing J100, fold J100 flexible board as that shown in figure. (Approx. 90°)
*Do not damage on flexible board.
18．M51, O170 (SI Block)
① Confirm that there is neither dust nor scratch on inside prism and mirror.
② SI block(M51,M52,M53,L11,L12,O170 and other)
③ TY-CNL-F1.7x4.5 x2
① ・・Install SI block to the pentaprism side as shown figure.
④ Apply screw lock.
[Caution] --- Disassembly
1. Set the diopter lever to the left side.
2. TY-CNL-G1.7x5.0 and washer x2.
3. Remove the glue which is around the J100.→
*Not to damage on J100.
4. 0-J100
①
②
