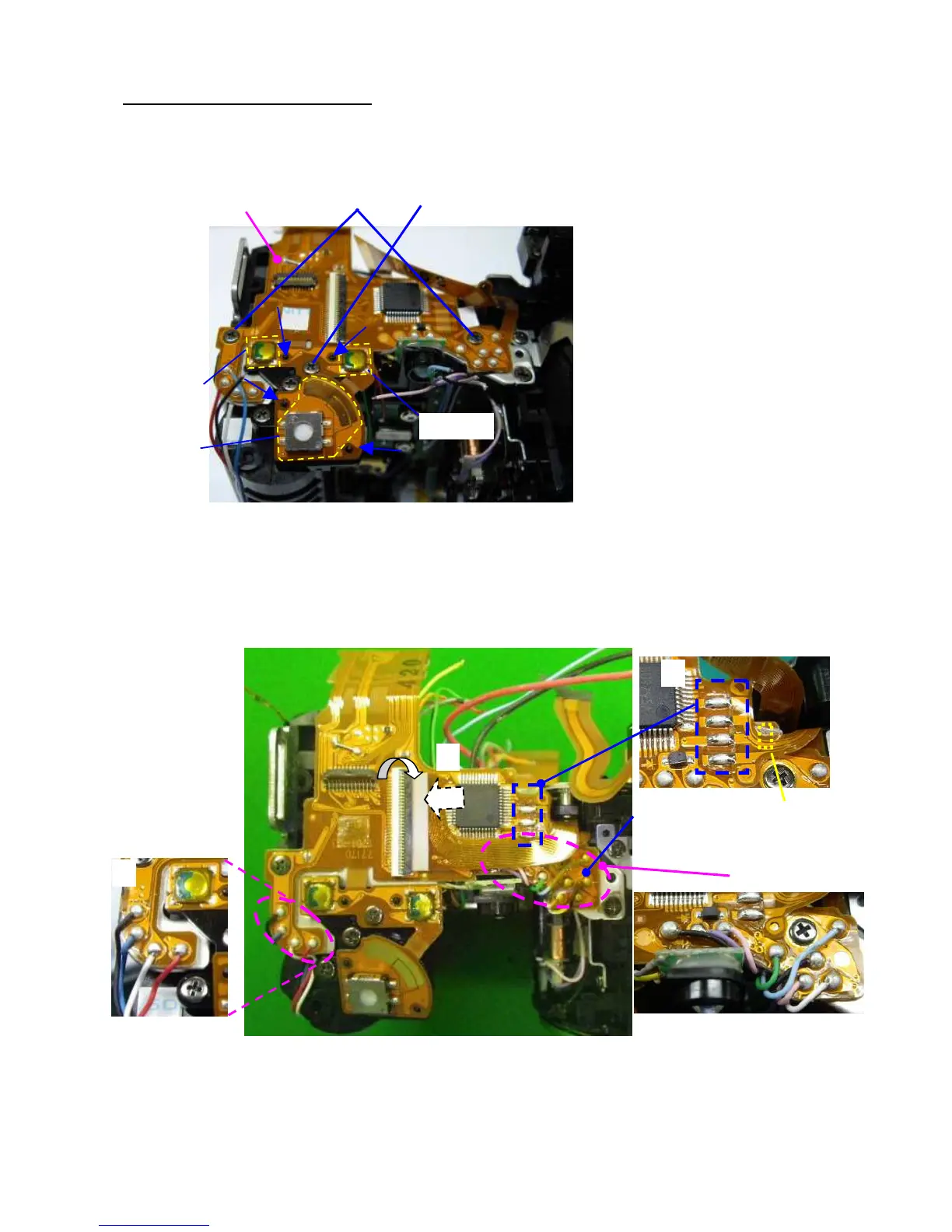

5. T700 (Upper flex circuit block)
①T700
②TY-CNL-D1.7x2.5
③CNL-D1.7x1.6 x2
④Hold T71 (G100) flex by DT (3x4) then solder 4 lands.
⑤Solder 12 lead wires then arrange lead wires. (④-T960/②-G100/⑤-E100/①-A105)
⑥Affix T89 (PI tape).
⑦Connect O100 flex (Flip lock)
A25(DT)
③

②

DT(5x5)
DT(5x5)
①

④

⑦

⑤

⑤

⑥

DT3x4
