77420 - 37/107 -

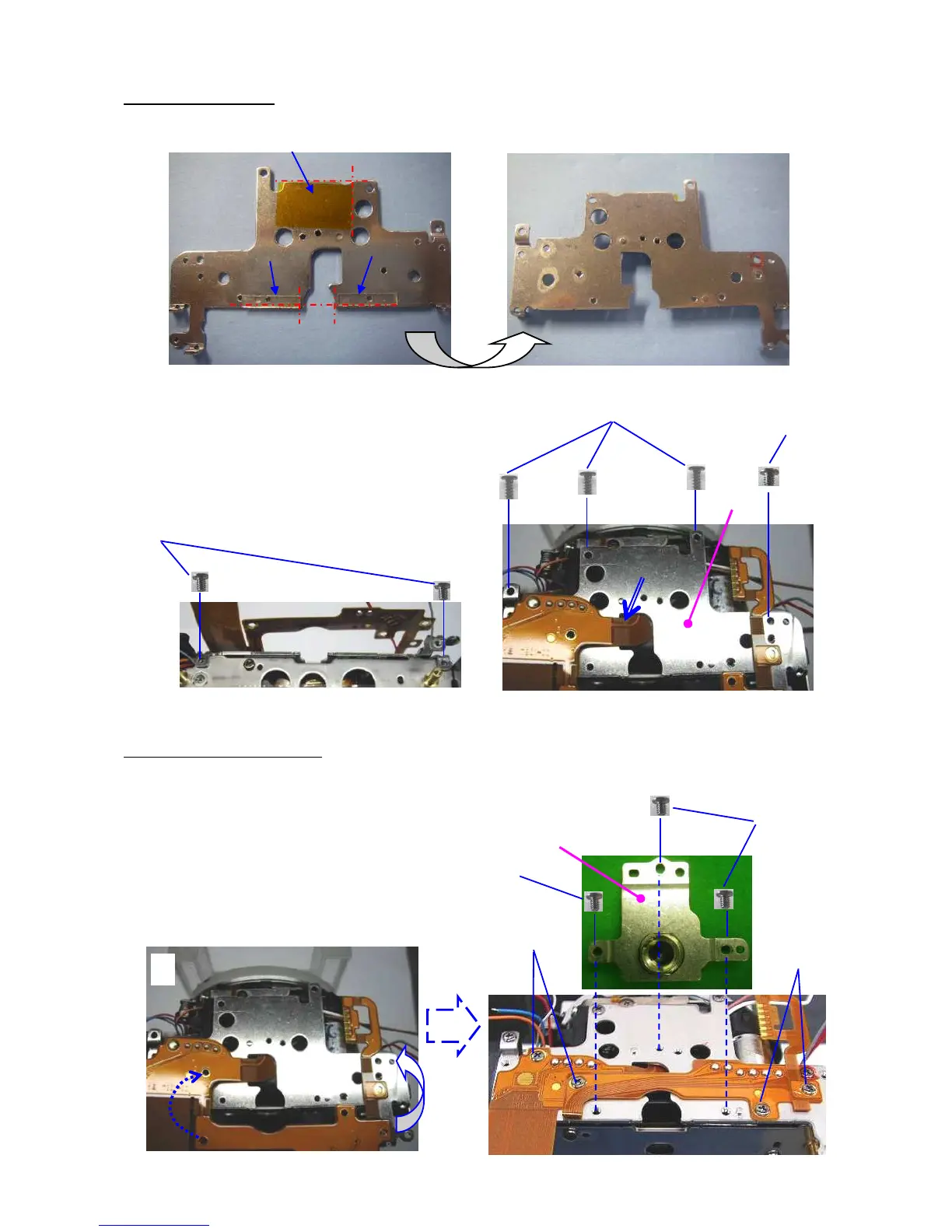

8. A3 (Bottom plate)
①Make sure there are 3 parts are installed.
②Install A3 while arranging flex.
③TY-CNL-D1.7x4.0 x3
④CNL-D1.7x2.2
⑤CNL-D1.7x2.5 x2
9. 0-A51 (Tripod plate assy.)
① Install T901 flex as shown in figure. (The screw hole is matched.）
② CNL-D1.7x1.6 x4
③ 0-A51
④ CNL-D1.7x2.5 x3
⑤

④

②

③

②

③

④

②

④

①

