77420 - 39/107 -

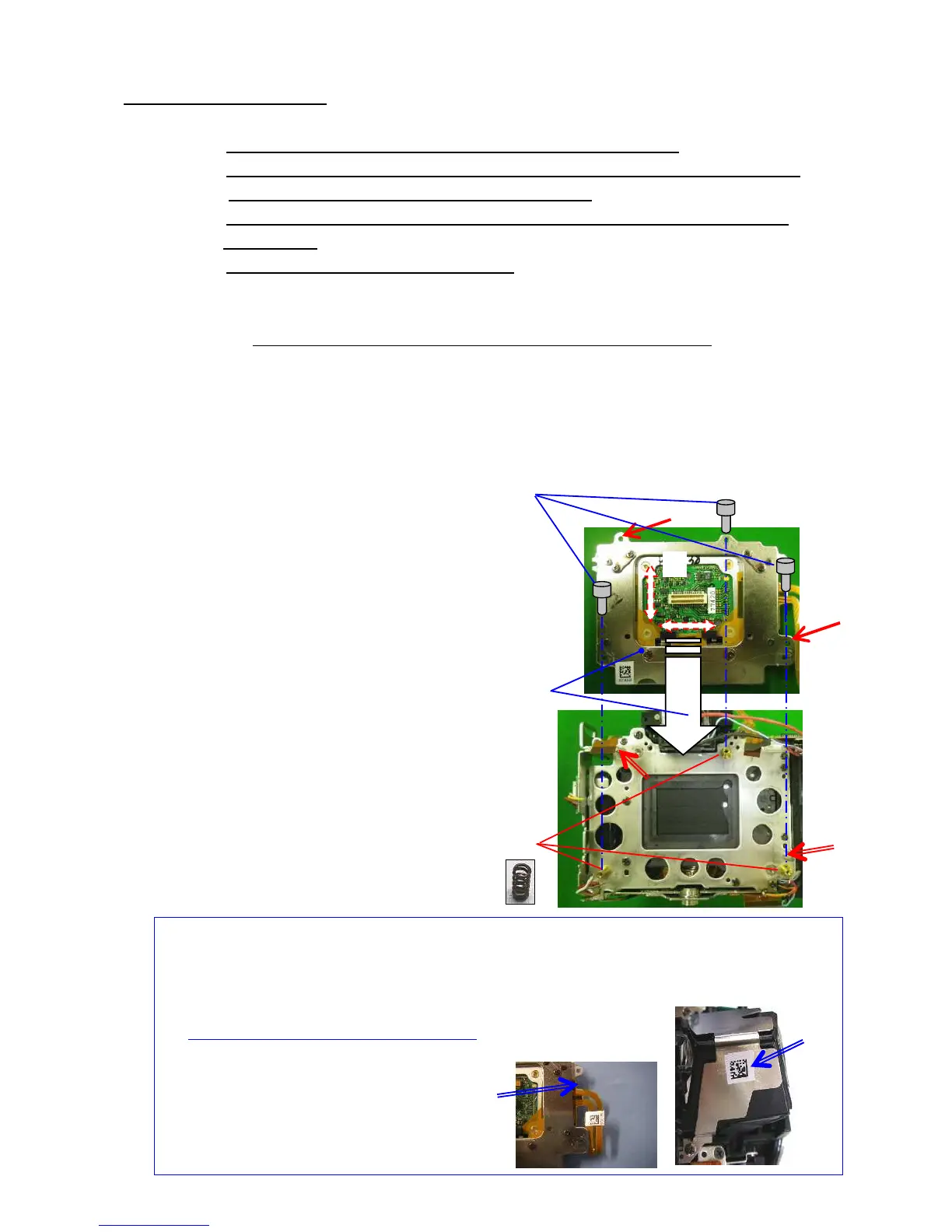

12. 0-C000 (SR block assy.)
[Required equipment] Hexagon wrench 1.5mm
[CAUTION 1] Pay attention, there is powerful magnet is carried in the SR block.
[CAUTION 2] Since performance can be damaged, the SR block cannot be disassembled and also
do not apply the external pressure to a movable part.
[CAUTION 3] The flex from SR should betaken care, otherwise it will affect the performance of
SR function.
[CAUTION 4] There is neither scratch nor dust on CCD.
* Attach mount cover then put downward.
①Install A22 x3 to pillar.
②[Confirmation] Center plate must move up and down and right and left by own weight.
③0-C000 --- Align with two guides post while arranging lead wire and flex then press 0-C000 against the
body.
[CAUTION] Confirm that A22 is not stick on the magnet
④A31 x3 --- Tighten three screws until stop while press 0-C000 against the body.
⑤[Adjustment] A31 x3 --- Screw back two turns --- Temporary adjustment of height of CCD.
[When replacing 0-C000]
① Replace to new bar-code seal on T630 and M9 (Penta cover)
[Caution: The number should be readable.]
② Write down new number for adjustment.
(Sensor ID No.)
*Transfer previous seal to replaced 0-C000.
