21-3-4.Finish the adjustment

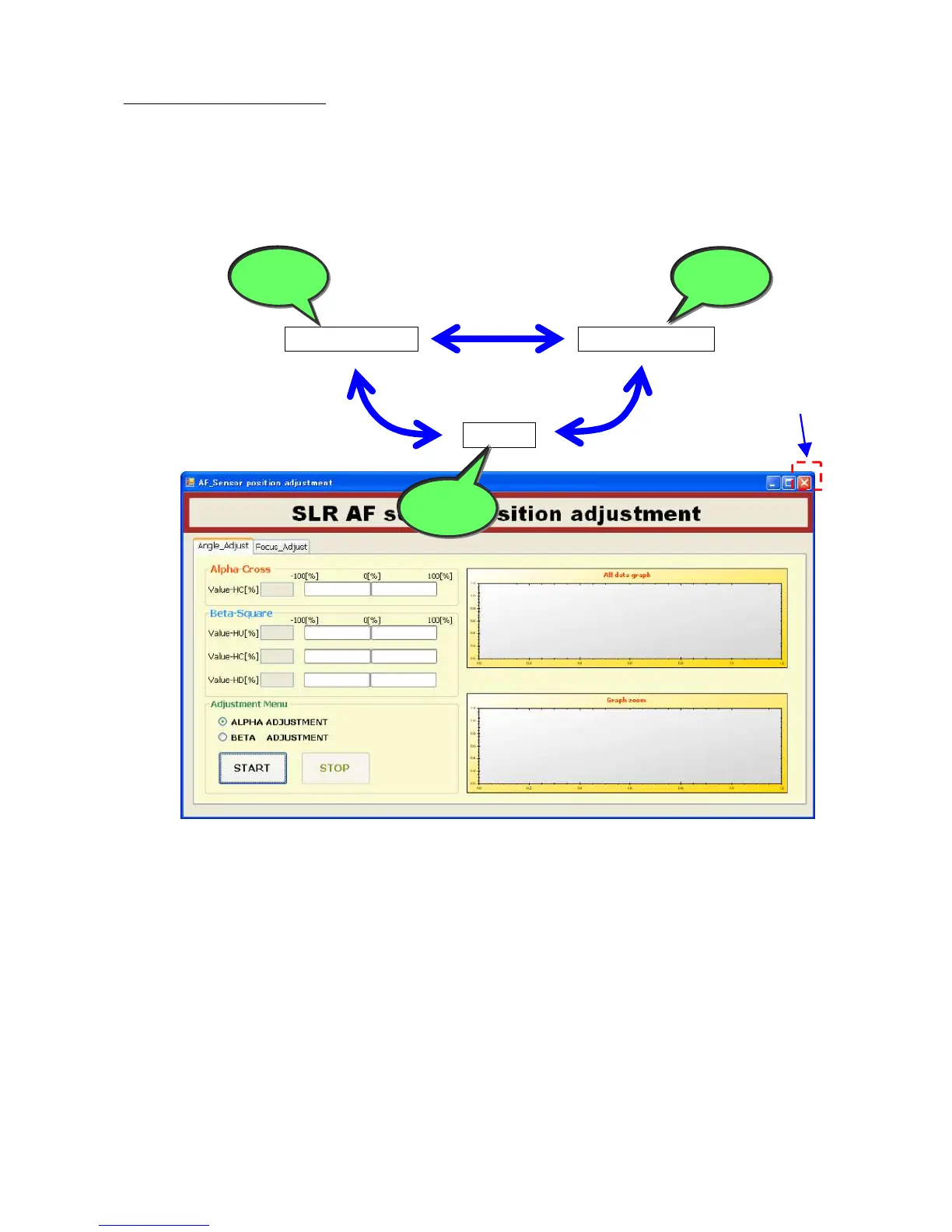

①[Caution] Alpha-CROSS, Beta-SQUARE and FOCUS ADJ (2m) should be all OK.
②[Caution] After finish the adjustment, confirm other two adjustment. If you readjust one adjustment,
confirm other two adjustment again. Carry out adjustment and confirmation repeatedly until all
adjustment become OK.
③After finish the all adjustment, click [Close] to finish adjustment.
④Apply screw lock to three adjustment screw for M100.
Alpha-CROSS Beta-SQUARE
