77420 - 76/107 -

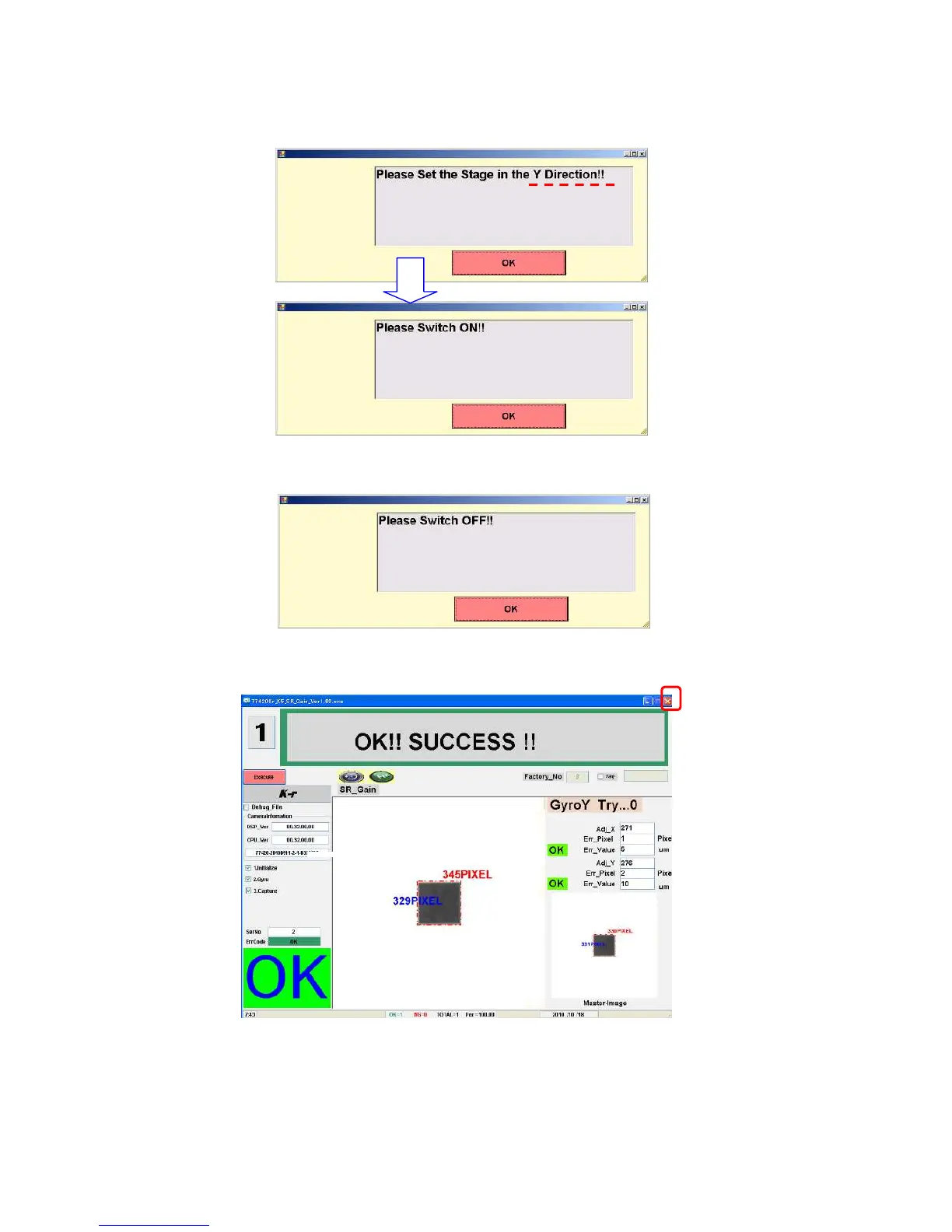

⑦When below message is displayed, set the stage in the Y direction.
Click [OK] to execute Y adjustment. (The same procedure as X adjustment)
⑧Turn OFF the controller and click [OK] button. Next adjustment will be started.
⑨When all adjustment is completed, [OK] screen will be displayed.
⑩Click [×] to finish adjustment software.
*If adjustment error is displayed, [NG] and error code will be displayed.
Refer to [Table of error code]
To Next Page
