77420 - 14/107 -

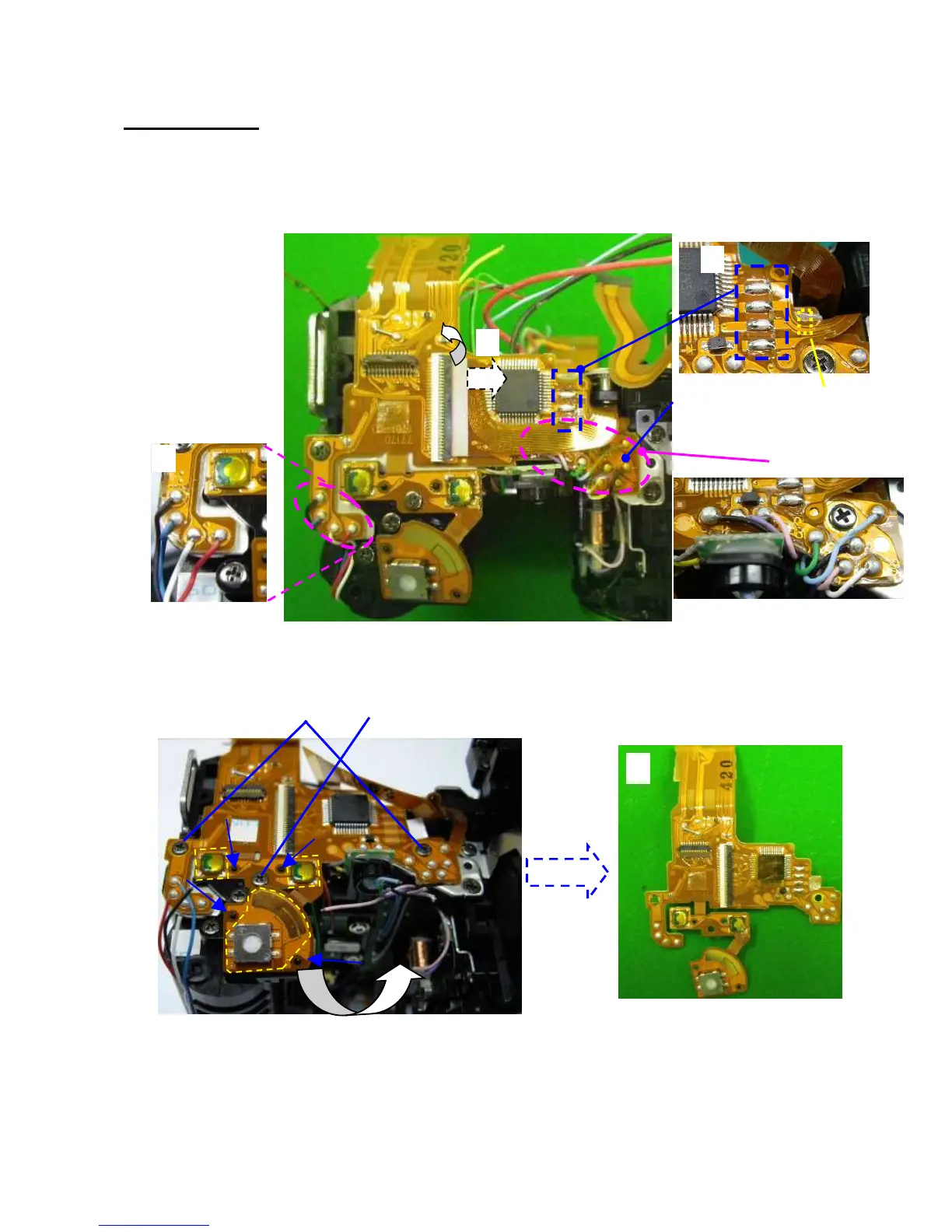

7. Removing T700
①Disconnect O100 flex from connector. (Flip lock)
②Peel off PI tape (T89)
③Unsolder lead wires x12
④Unsolder flex 4 lands on T71 (G100)
⑤Unscrew CNL-D1.7x1.6 x2
⑥Unscrew TY-CNL-D1.7x2.5
⑦T700
④

①

③

③

②

DT3x4
⑤

⑦

⑥

