Pentax K-r - K-r Camera Characteristics

77420 - 15/107 -

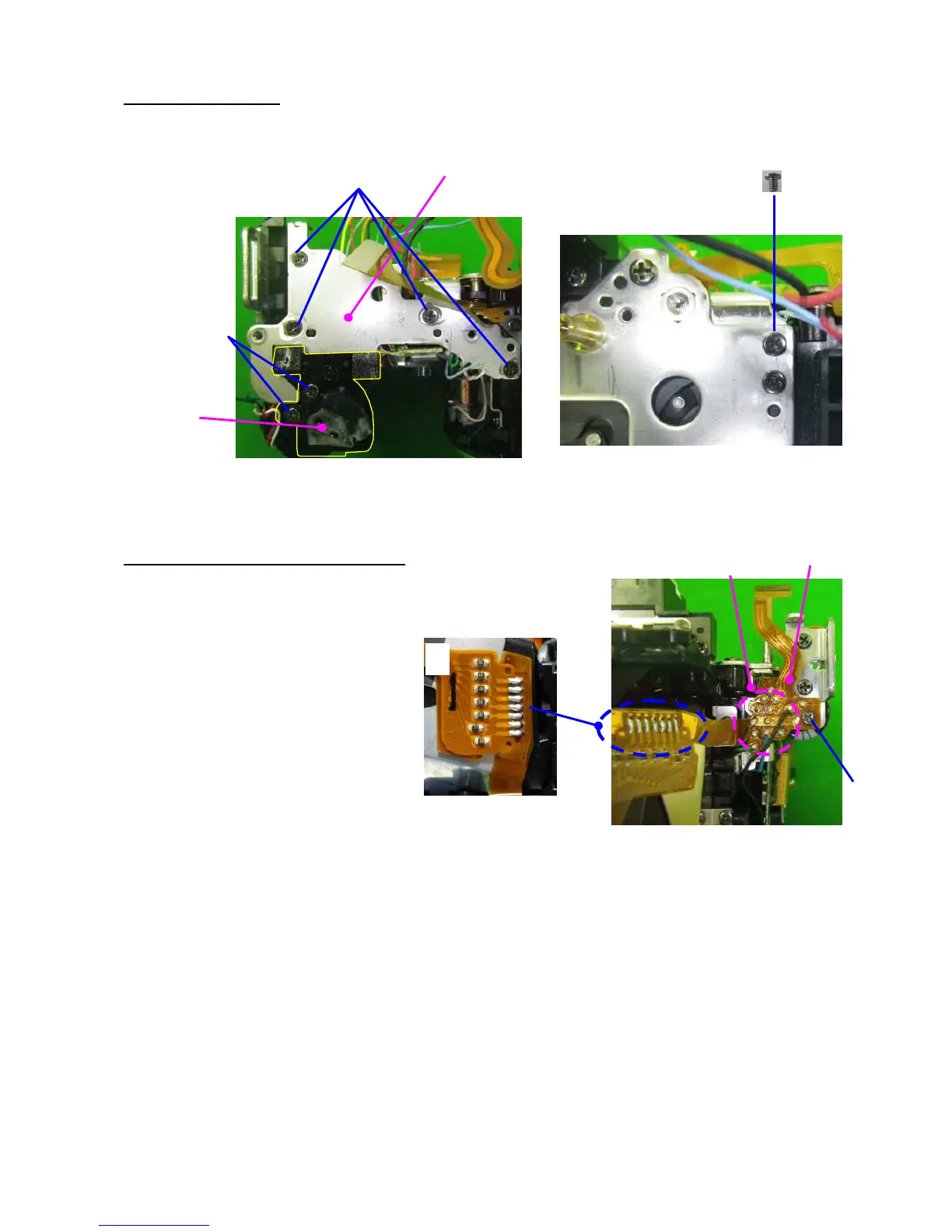

8. Removing A6, A19
①Unscrew TY-CNL-D1.7x4.0 x2
②A19
③Unscrew TY-CSM1.7x4.0 x4
④Unscrew CNL-D1.7x2.5
⑤A6
9. Removing T750 (Strobe flex board)
① Unscrew CNL-D 1.7x3.0
② Unsolder flex 7 lands on O170
③ Unsolder lead wires x4
④ T750
④

⑤

①

③

②

①

②

③

④

