77420 - 25/107 -

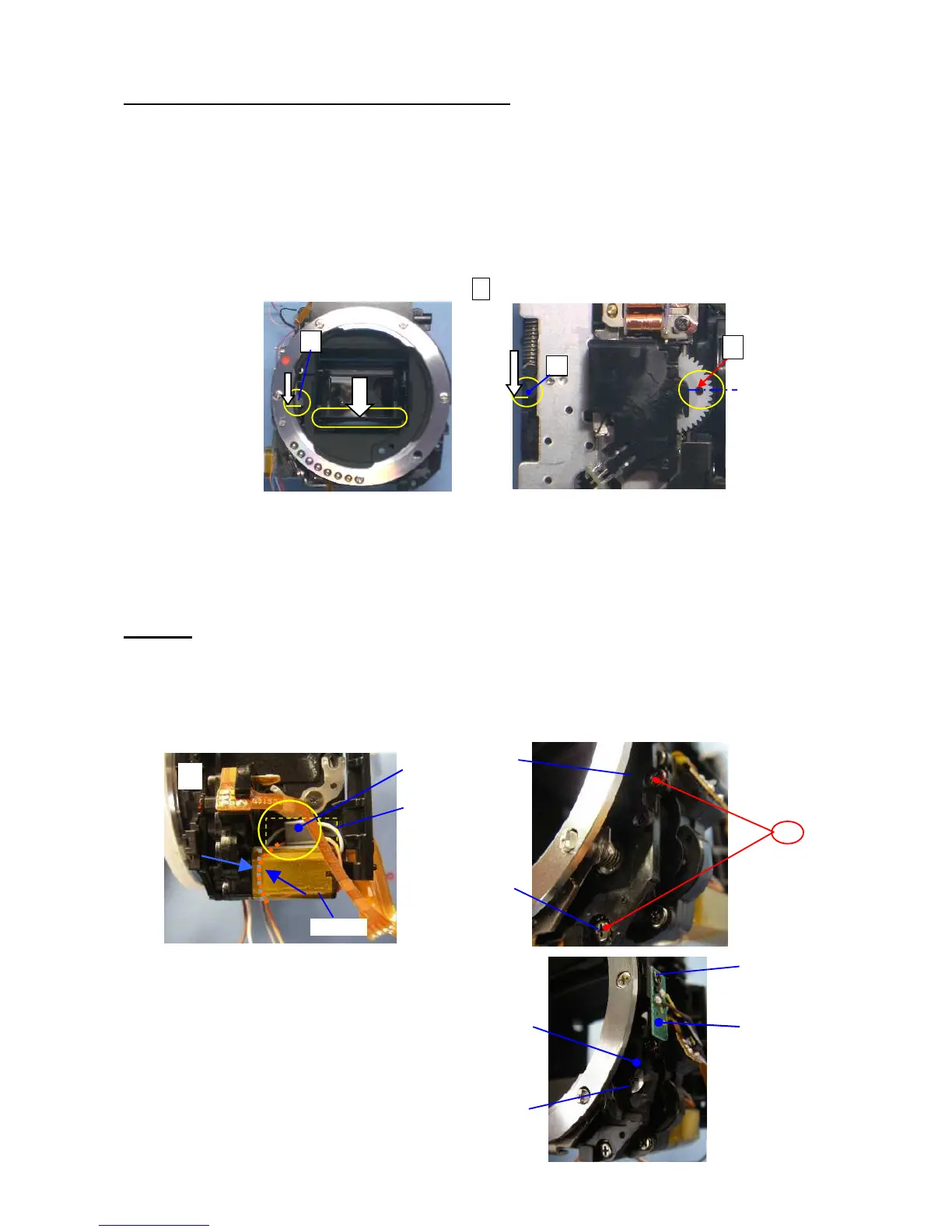

7. [Confirmation] Checking the mirror function

[Required equipment] Power supply

① Confirm the following points while applying DC 2V to the mirror motor. (Red wire: Positive)

-1) The mirror seat must be moved smoothly without noise.

-2) The shutter charge lever (b) and sliding plate (a) must be moved smoothly and surely go up and down.

② Set the mirror seat to the down position while applying DC1.5V.

(Fine adjustment is possible when turn white gear at behind of G100.)

Mirror down: mirror, sliding lever, shutter charge lever at down position.

White gear must be positioned as shown in figure. (※)

③ Both mirror seats 1

and 2

must be returned smoothly to the original position when both mirror seat are

passed inward about 3mm by finger pressure.

④ Set the mirror seat to the down position.

8. 0-S300

① Arranged lead wire from motor and S364 as shown in figure and then attach 0-S300.

② TY-CNL-D1.7x3.5

③ TY-CNL-D1.7x5.5

④ Apply screw lock.

⑤ T940

⑥ TY-CNL-D1.7x3.0

⑦ A115

⑧ TY-CNL-G1.7x2.5

※

⑦



⑧



⑥



⑤



④



②



③



①



S364

DT(5x15)

0-S300
