77420 - 24/107 -

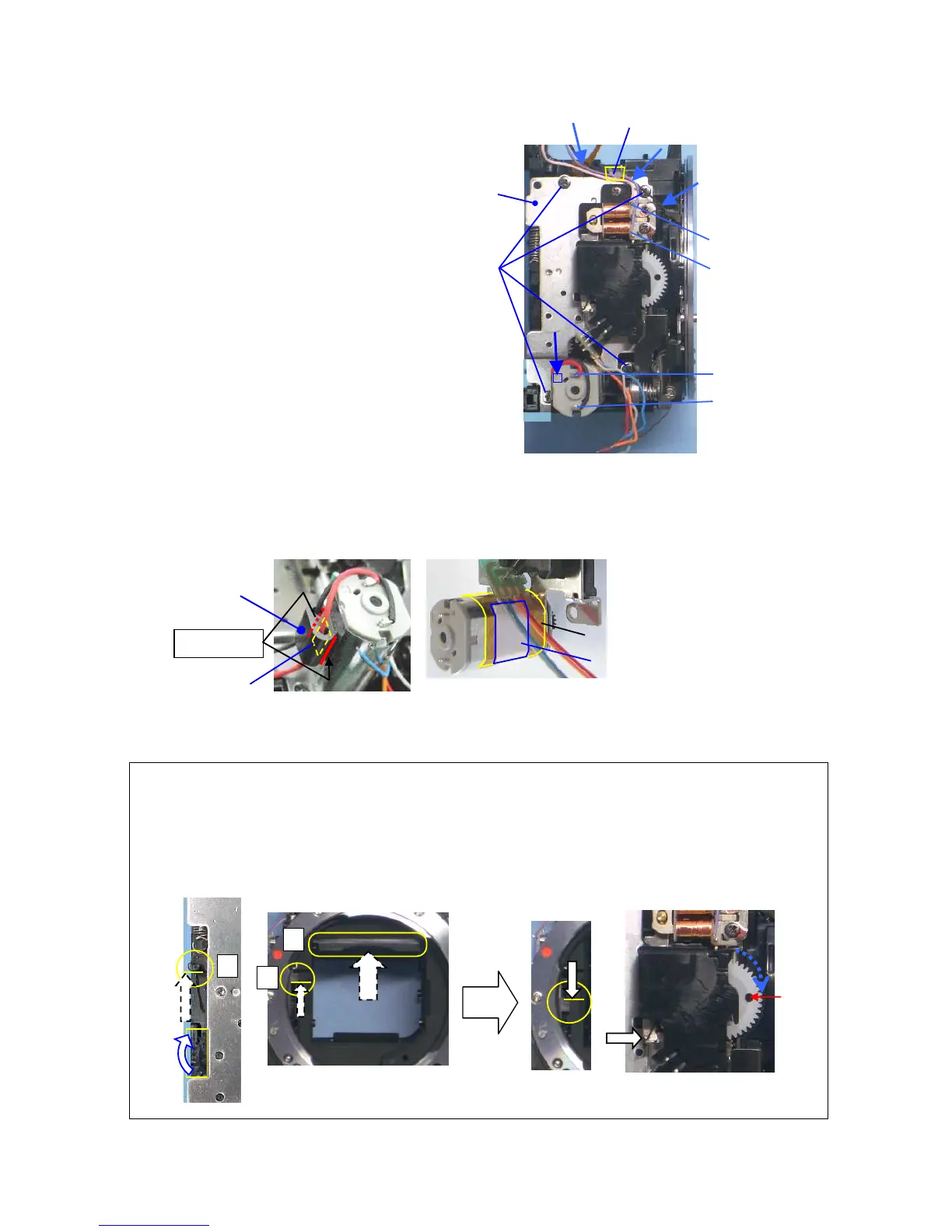

⑯ 0-G100
 --- Surely install G100 without any gap between plates.
⑰ TY-CNL-D1.7x3.0 (x4)
⑱ Arrange the lead wires with DT(5x5) as shown in figure.
[Arrangement when replace 0-S250]
1. Affix 76140-A61 and DT (7x10) on the mirror motor as shown in figure.
2. Affix S364 on the mirror motor by DT (5x7) and apply super-X (B).
U3
DT(7x10)
S364
Super-X(B)
DT(5x7)
⑯

⑰

Pink (45mm)
Purple (50)
Red (65mm)
Black (75)
⑱

[Notice for disassembly] Set the mirror sheet at top position before removing 0-G100
1. As shown in a figure, a gear is turned, and it sets to a mirror up position.
Mirror up: (Shutter charge lever (1) and mirror sheet (2) and sliding plate (3) must be top end position.)
2. Latch the lever of G100 while pushing down the sliding plate.
3. Remove G100
①
②
③
