Pentax K1000 User Manual

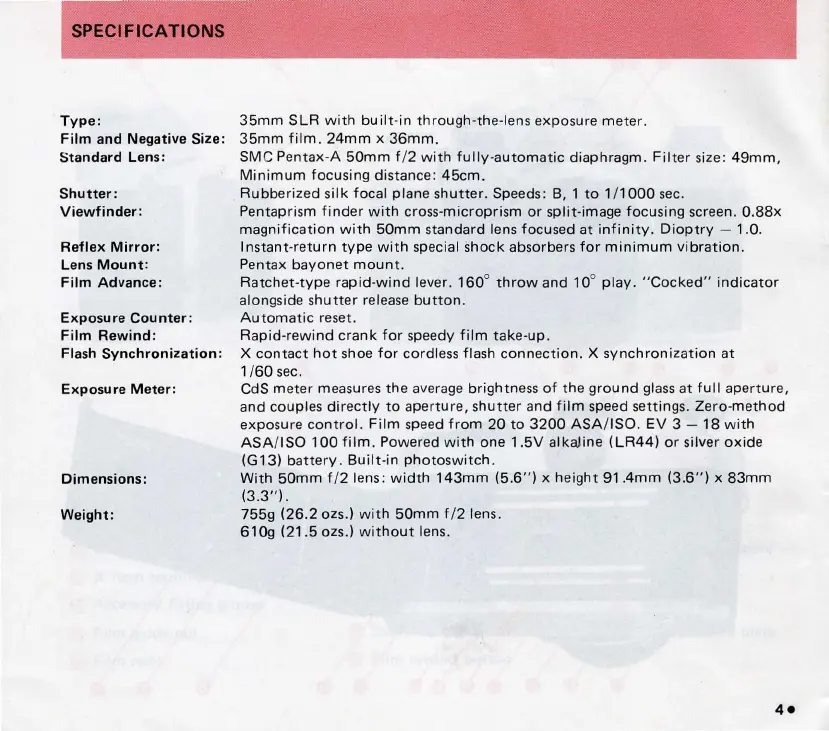

SPECIFICATIONS
Type: 35mm SLR with built-in through-the-Iens exposure meter.
Film and Negative Size: 35mm film. 24mm x 36mm.
Standard Lens: SMC Pentax-A 50mm f /2 with fully-automatic diaphragm. Filter size : 49mm ,
Shutter:
Viewfinder:
Reflex Mirror:
Lens Mount:
Film Advance:
Exposure Counter:
Film Rewind :
Minimum focusing distance: 45cm.
Rubberized silk focal plane shutter . Speeds : B, 1 to 1/ 1000 sec .
Pentaprism finder with cross-microprism or split-image focusing screen. 0.88x
magnification with 50mm standard lens focused at infinity . Dioptry - 1.0.
Instant-return type with special shock absorbers for minimum vibration .
Pentax bayonet mount.
Ratchet-type rapid-wind lever. 160 ° throw and 10 ° play . "Cocked" indicator
alongside shutter release button.
Automatic reset.
Rapid-rewind crank for speedy film take-up.
Flash Synchronization : X contact hot shoe for cordless flash connection . X synchronization at
Exposure Meter :
Dimensions:
Weight:
1/60 sec .
CdS meter measures the average brightness of the ground glass at full aperture,
and couples directly to aper ture, shutter a nd film speed settings. Zero-method
exposure control. Film speed from 20 to 3200 ASA / ISO . EV 3 - 18 with
ASA / ISO 100 film . Powered with one 1.5V alkaline (LR44) or silver oxide
(G 13) battery . Built-in photoswitch .
With 50mm f / 2 lens : width 143mm (5. 6") x height 91.4mm (3.6") x 83mm
(3.3") .
755g (26 .2 ozs.) with 50mm f / 2 lens.
610g (21 .5 ozs.) without lens.

Pentax K1000 Specifications

General

ISO Range	20-3200
Lens Mount	Pentax K
Shutter Speed	1/1000s to 1s, Bulb
Metering	Center-weighted
Focus	Manual
Flash	Hot shoe
