3.3 Arranging the detector

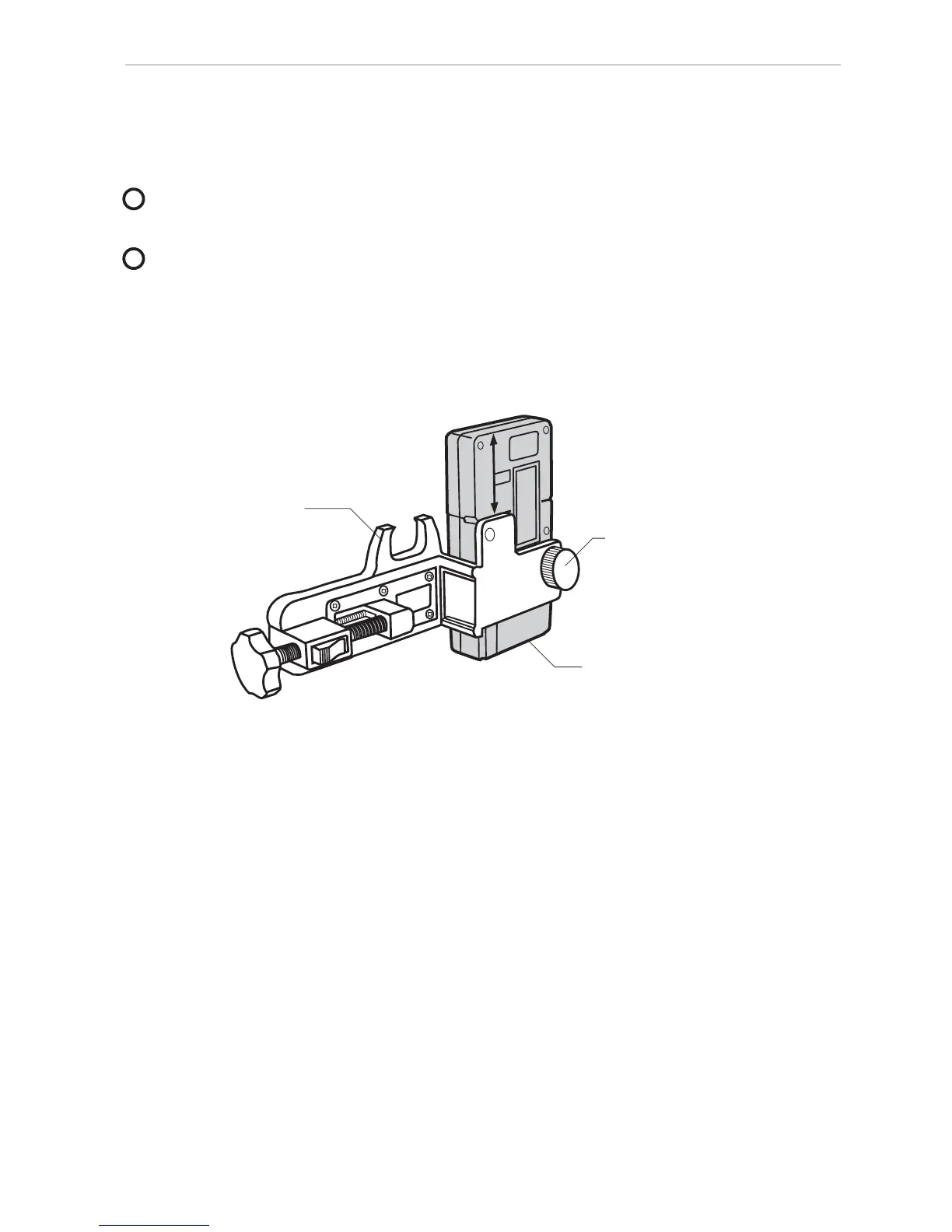

[Installing the rod adapter LA6]
LS7 detector
Mount the instrument on the rod adapter so that the guide pin of the
rod adapter is inserted into the guide hole in the back of the detector.
Tighten the attaching screw of the rod adapter into the detector.
NOTE:
• The rod adapter is to be used when the detector is used together with
a staff or plain rod.
1
2
Rod Adapter
Fixing screw
Detector
