2.7 Label Carrier
For individual labeling, the isolated barriers are equipped ex works with a label carrier.
Labels can be inserted into the label carrier.
It is also possible to attach an adhesive label to the transparent front flap.

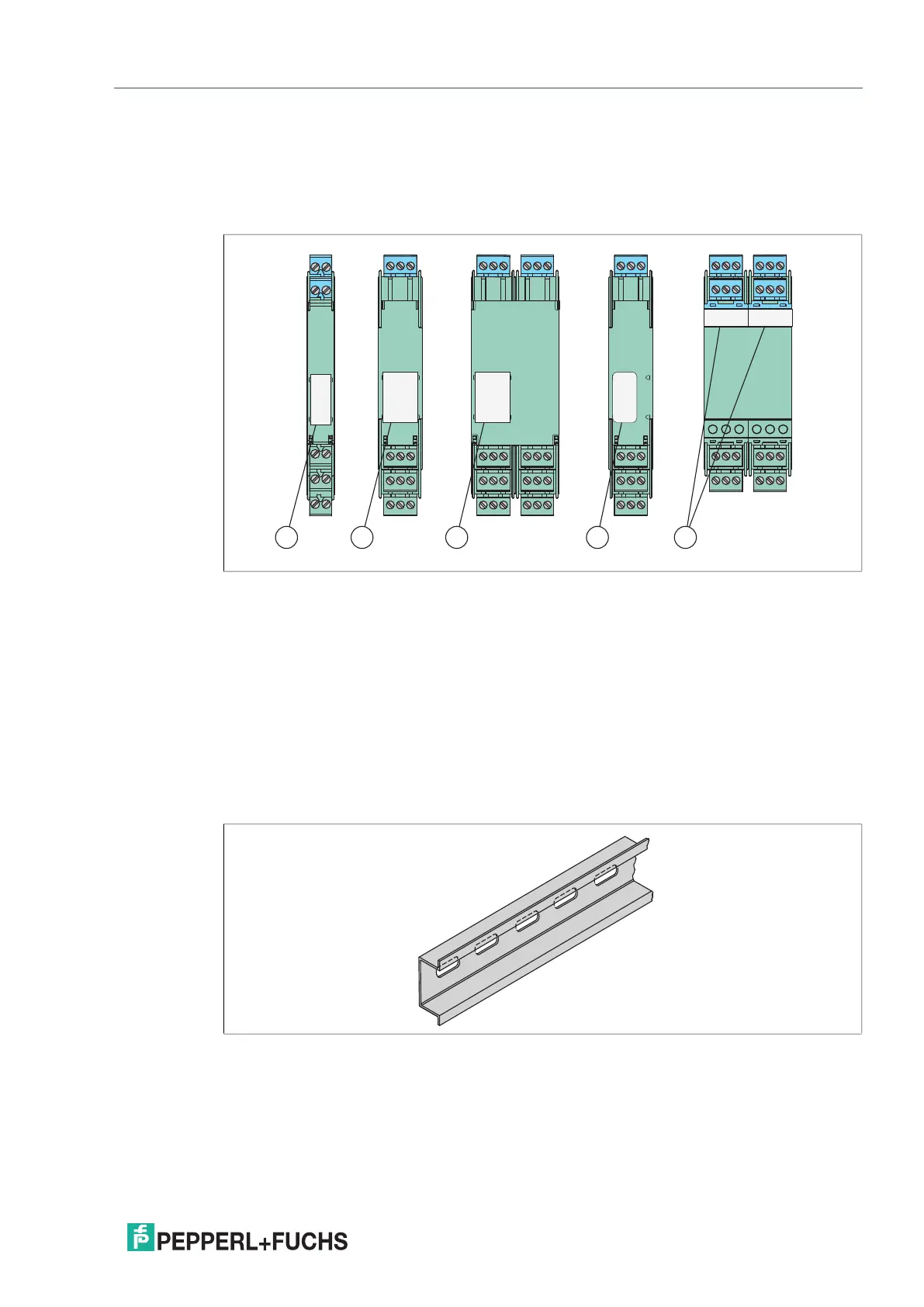

Figure 2.21 Devices with transparent front flap
2.8 DIN Mounting Rail
The devices are mounted on a 35 mm DIN mounting rail according to EN 60715.
Figure 2.22 Example: DIN mounting rail UPR-MR (35 mm x 15 mm)
1 Label carrier on KC devices with 22 mm x 9 mm label
2 Label carrier on KF devices with 22 mm x 16.5 mm label
3 Adhesive label 22 mm x 11 mm for all KC and KF devices, can only be used on devices
with a transparent front flap
4 Label carrier on KF devices with 18 mm x 8 mm label, can only be used on devices
without a transparent front flap
