K-System – Isolated Barriers
Dismounting, Maintenance, and Repair
DOCT-0187Y 2023-12
41
6.1 Dismounting the Isolated Barrier
Dismounting the Isolated Barrier
Use for dismounting of the device a slotted screwdriver
1. Insert the screwdriver (4) into the groove of the red mounting slider (3).
2. Turn the screwdriver (4) in the groove until the red mounting slider (3) springs back.
3. Repeat these steps on the other side of the device.
4. Remove the isolator (2) from the DIN mounting rail (1).

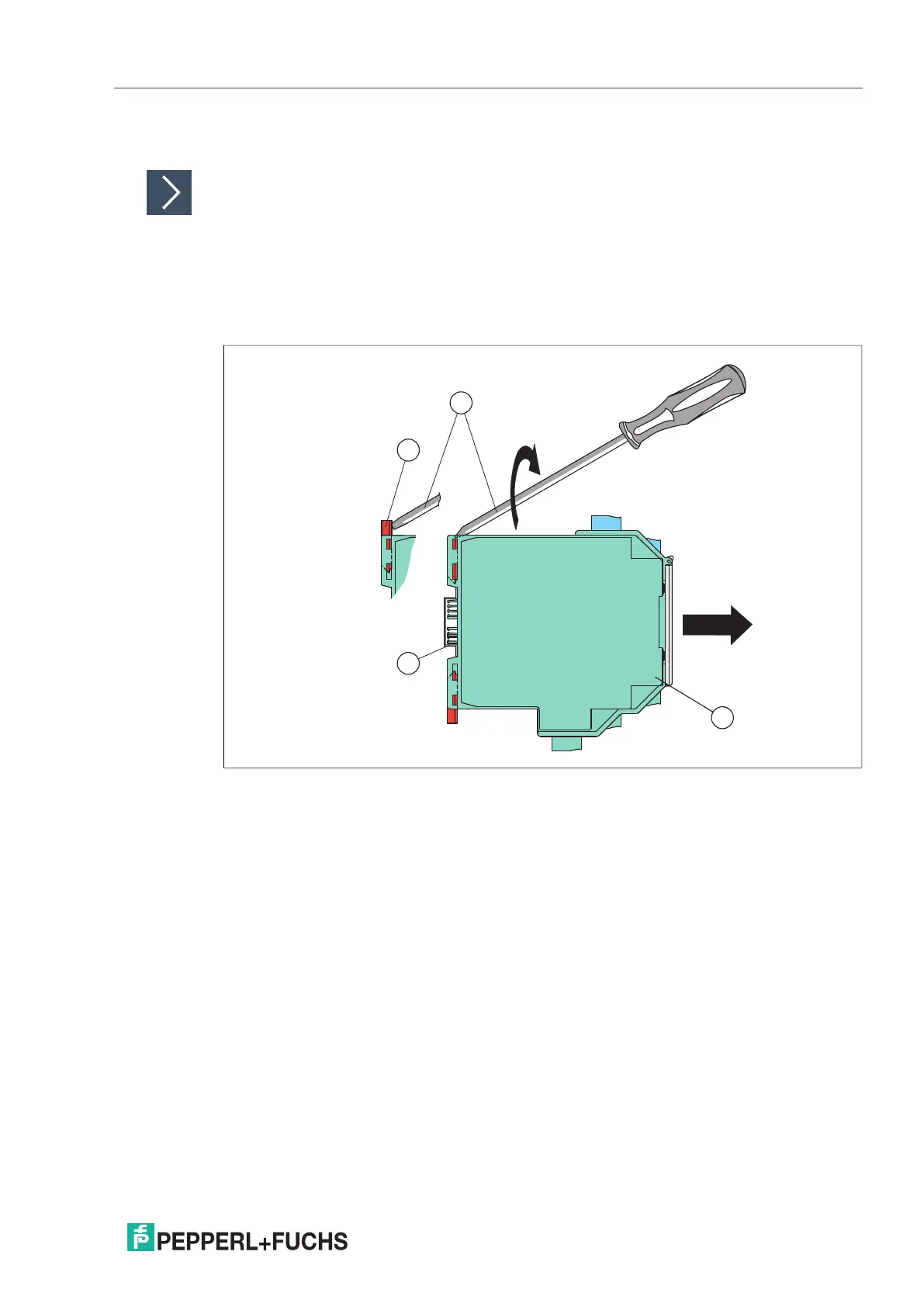

Figure 6.1 Dismounting of the isolated barrier from the DIN mounting rail
1 35 mm DIN mounting rail
2 Isolated barrier
3 Mounting slider
4 Slotted screwdriver
1
2
4
3
