K-System – Isolated Barriers
Product Specifications
DOCT-0187Y 2023-12
9

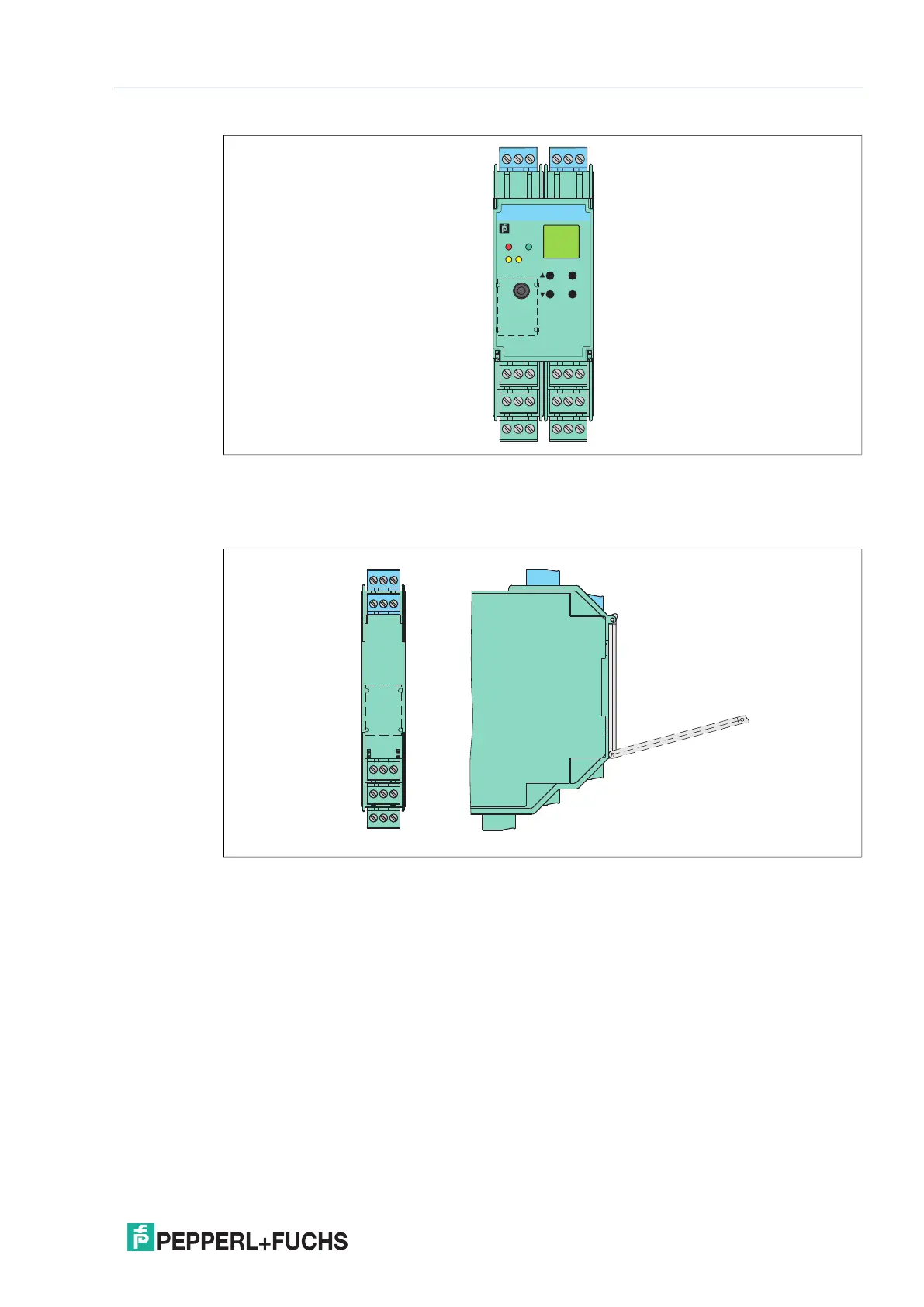

Figure 2.5 KF device housing (40 mm)
Transparent Front Flap
The KC and KF devices have a transparent front flap.
Figure 2.6 Transparent front flap for KC and KF devices, example
This front flap has several functions:
• Protection of the device against electrostatic discharge
• Protection of the operating elements from pollution, see chapter 2.6
• Integrated label carrier for individual labeling, see chapter 2.7
ESC
OK
KFD2-WAC2-
Ex1.D
RS232
PWR
12
FLT
OUT
19 21
15
9
13
7
20
14
8
22 24
18
12
16
10
23
17
11
1
3
24
6
5
