The time delay setting between ignition off and power down of the router is a configurable
setting, which allows the router to stay on for a period of time after the engine of a vehicle is
turned off.

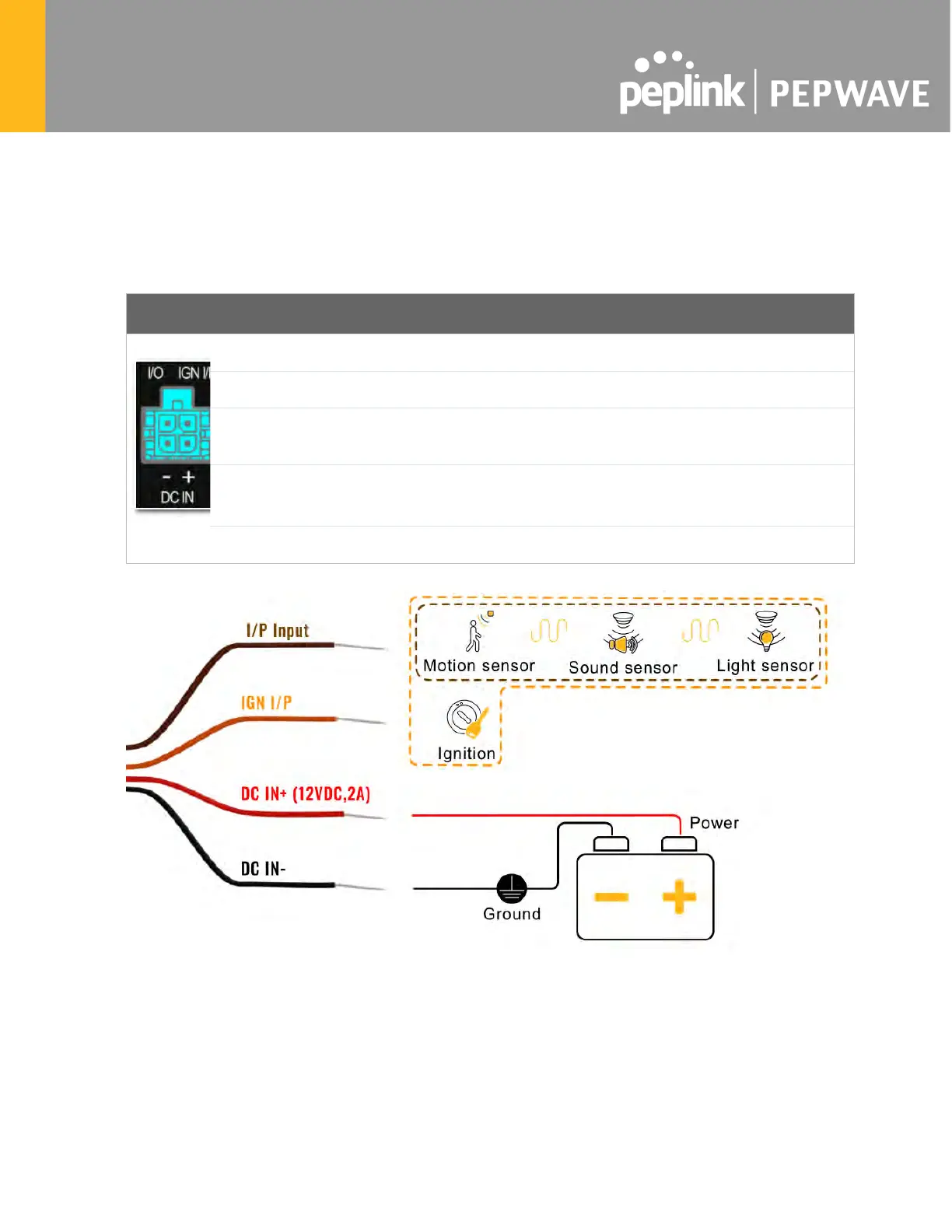

Ignition Sensing installation
Functoin
Colour Wire
I/O
optional* Brown
IGN I/P
connected to positive feed on the ignition . Orange
DC IN
-
connected to permanent negative feed (ground) Black
+
connected to permanent positive feed (power
12VDC, 2A)).
Red
* Currently not functional; will be used for additional features in future firmware
To Next Page
