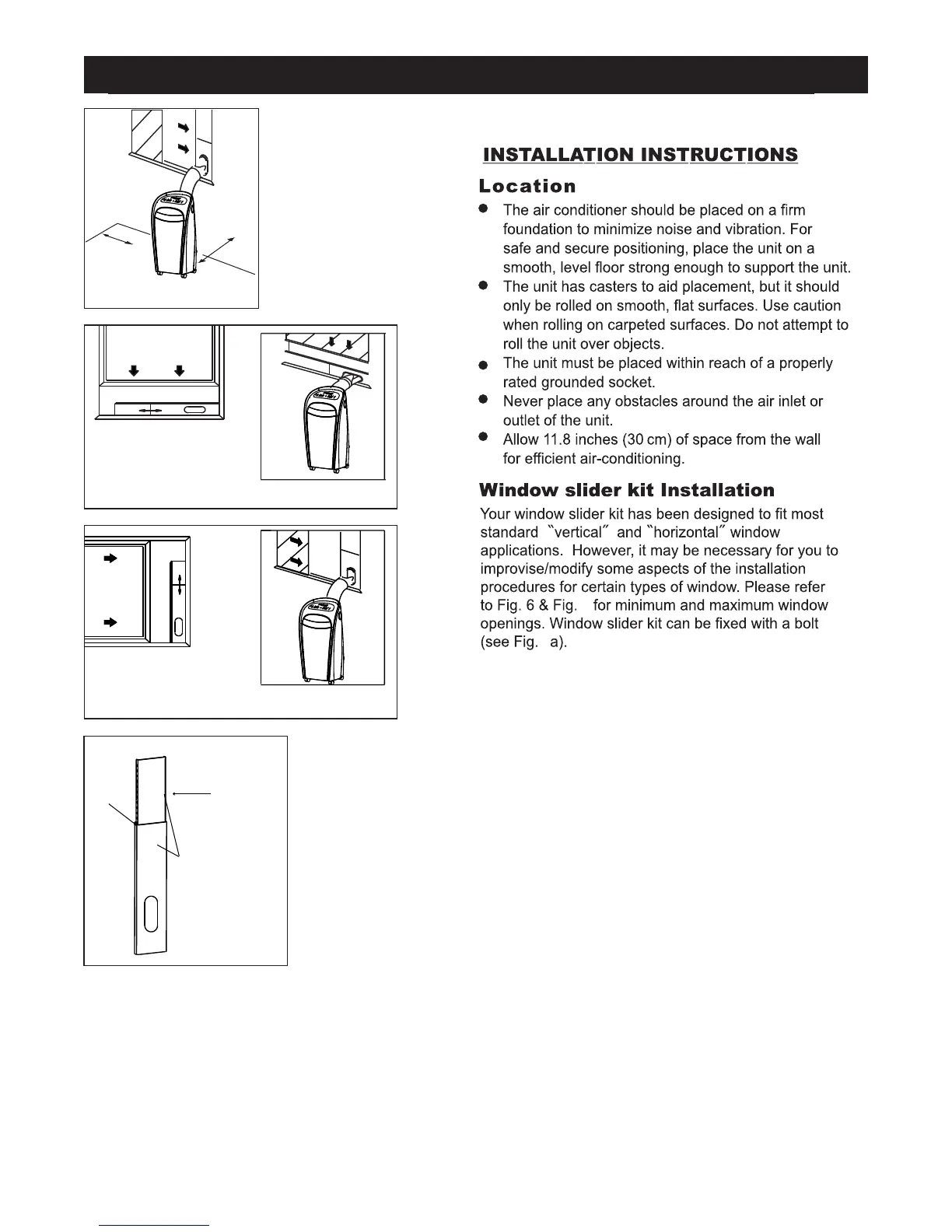

INSTALLATION INSTRUCTIONS
11.8 in
Fig. 5
bolt
Window slider kit
Extension
piece
11.8 in
Horizontal
window
Vertical
window
Window Slider Kit
Minimum:2.22 ft (67.5 cm)
Maximum:4.04 ft (123 cm)
Fig. 7a
Fig. 6
Fig. 7
Window Slider Kit
Minimum:2.22 ft (67.5 cm)
Maximum:4.04 ft (123 cm)
7
NOTE: If the window opening is less than 2.22 ft, cut
the extension piece (see Fig. 7a) shorter so the kit
properly fits in the window opening. Only cut if
absolutely necessary. Never cut the hole in the window
slider kit.
7
8
To Next Page
