SLG2008A
Owner’s Manual
9

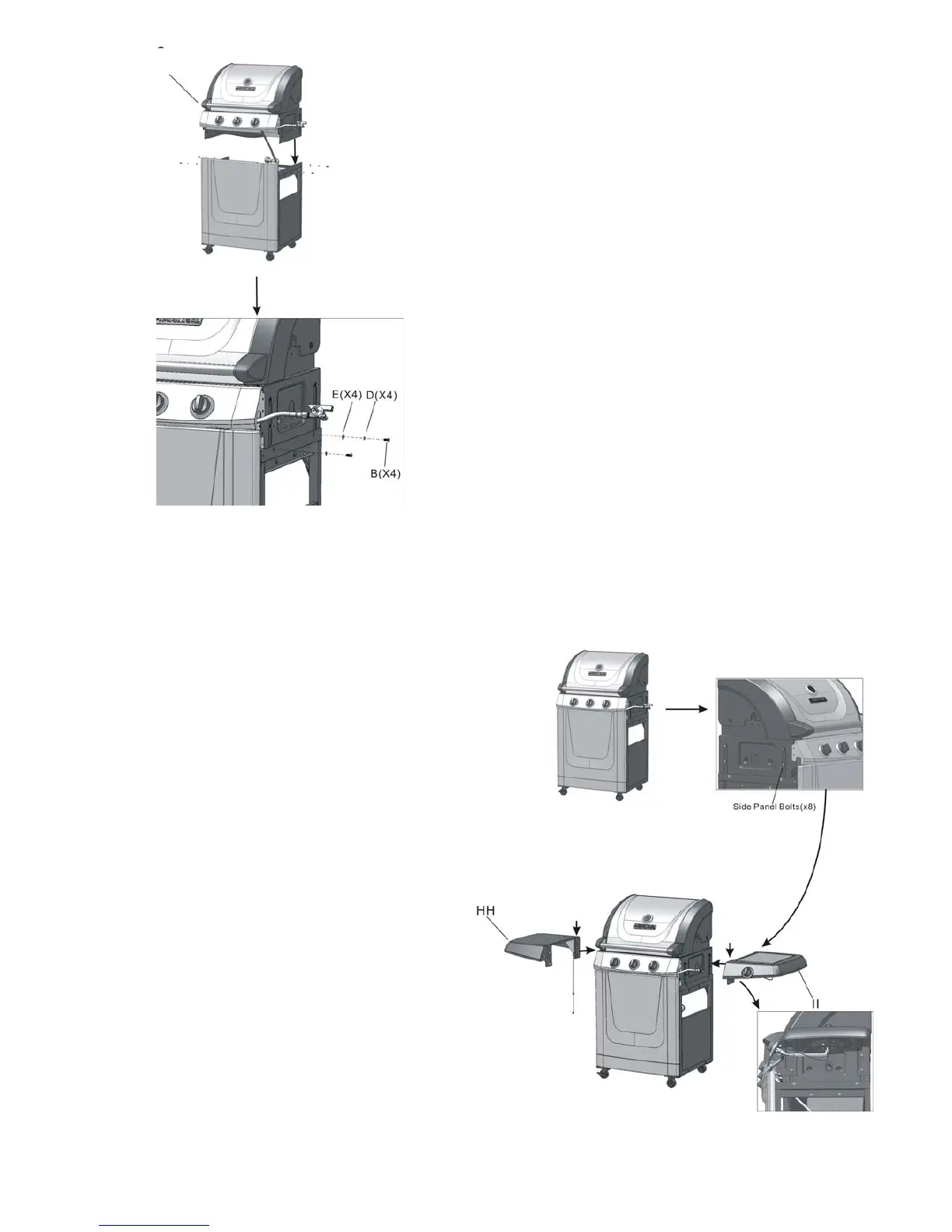

Step 6
a) Loosen the four side panel bolts (pre-attached) on left
side of the body assembly and allow
1/4 bolt’s length to
extend from the body assembly.
b) Align the large holes of the left side shelf (HH) with the
bolts extended from the body assembly.
c) Push down the left side shelf until the shelf locks into
place. Tighten bolt connections by hand until secure.
d) Repeat the same procedure for the right side shelf (II).
e) Go back to tighten all the bolts using the screwdriver
provided.
Step 5
a) Place the body assembly (GG) on top of the cart
assembly.
Note: Make certain the pre-drilled holes on the left side
of the body assembly are properly aligned.
b) Insert one M6x20mm bolt (B), one spring washer (D)
and one M6 washer (E) into each hole on left side of the
body assembly.
Tighten the bolt by hand until secured.
c) Repeat the procedure for right side of the body
assembly.
d) Go back to tighten all the bolts using the screwdriver
provided.
GG
To Next Page
