SLG2008A
Owner’s Manual
12

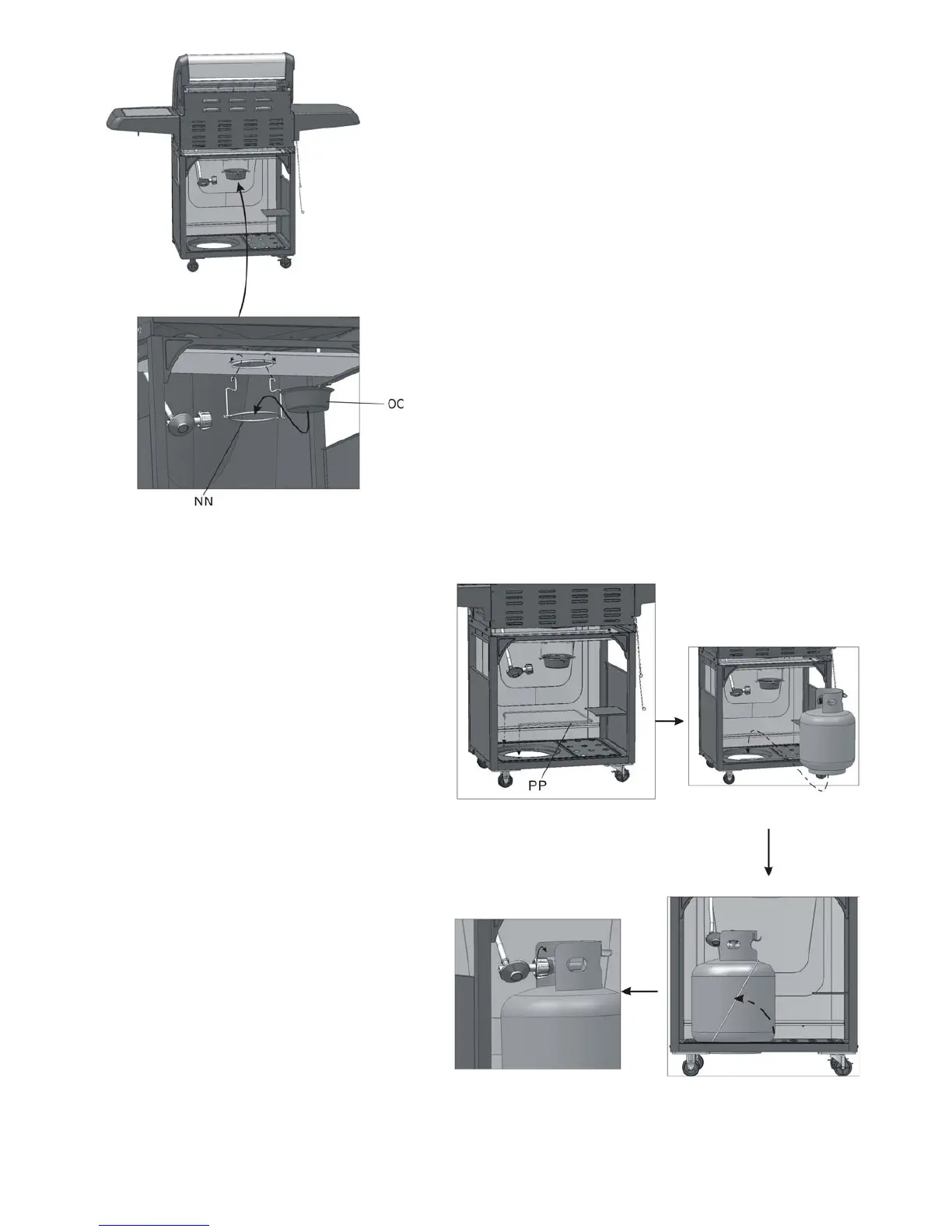

Step 11
a) Hook the cup support (NN) into the grooves
beneath the heat insulating plate.
b) Place the grease cup (OO) on the cup support.
Step 12
a) Insert the tank clip (PP) into the holes on the
gas tank support. Place the gas tank on the
tank support and clip it using the tank clip.
b) Connect the tank with regulator by screwing
the collar onto the tank valve. (See diagram
to right.)
c) Make certain all connections are connected
securely.
