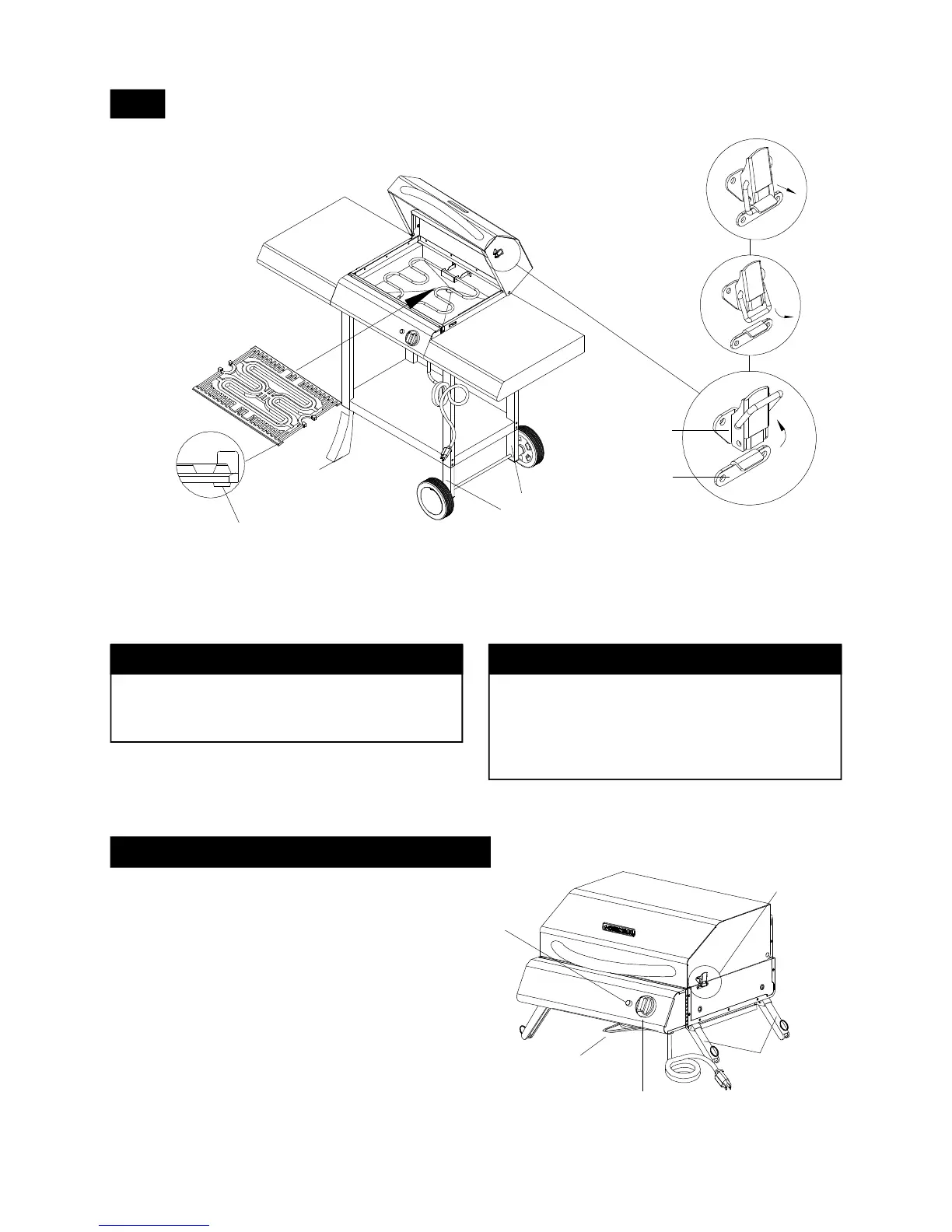

Perfect Flame LE1808CA - Page 12

12
Unplug the electrical cord.
Remove Cooking Grid from inside Grill
Bowl and Grease Receptacle before
detaching the Grill Head.
With the help of an assistant, unscrew
the 6 Wing Bolts from the underside of
the Right Side Shelf and Left Side Shelf.
CAUTION: Grill Head may become
unstable when removing the Wing Bolts.
Lift and remove the Grill Head from
Bowl Bracket.
Open the foldable legs from under the
Grill Head, then reinstall the Grease
Receptacle.
1.
4.
3.
2.
Fig. 11
5.
Grill Head Lid Latches
Upper &
Lower
Electric cord
Foldable Legs
Grease
Receptacle
Foldable
Leg
Control
Knob
Temperature
Light
Option: Portable Grill Use (Fig. 11)
9
Install Cooking Grid (Fig. 10)
1.
Cooking Grid
Left Side
Shelf
Right Side
Shelf
Lower Left
Cart Legs
Upper
Lid Latch
Lower
Lid Latch
1.
3.
2.
Fig. 10
Cart Bottom
Shelf
Lower Right
Cart Legs
Direction: Cooking Grid
Foot Facing down
Final Grill Assembly Step
When you have finished assembling your
grill be sure that all screws are tightened
for safe operation of your grill.
IMPORTANT
Remove the Grease Receptacle BEFORE detaching
the Grill Head for portable or table-top use.
Reinstall the Grease Receptacle once the Grill Head
is firmly in position (with legs opened and placed on a
flat surface).
Release the latch on either side of the Lid and open the
Lid to place the Cooking Grid in the Grill Bowl ledge.
