Perfect Flame LE1808CA - Page 11

11
Grease Tray Bracket
8
Special Flat Head Screw
1/4 in. x 7/16 in.
Qty. 2
Part # S193G04074

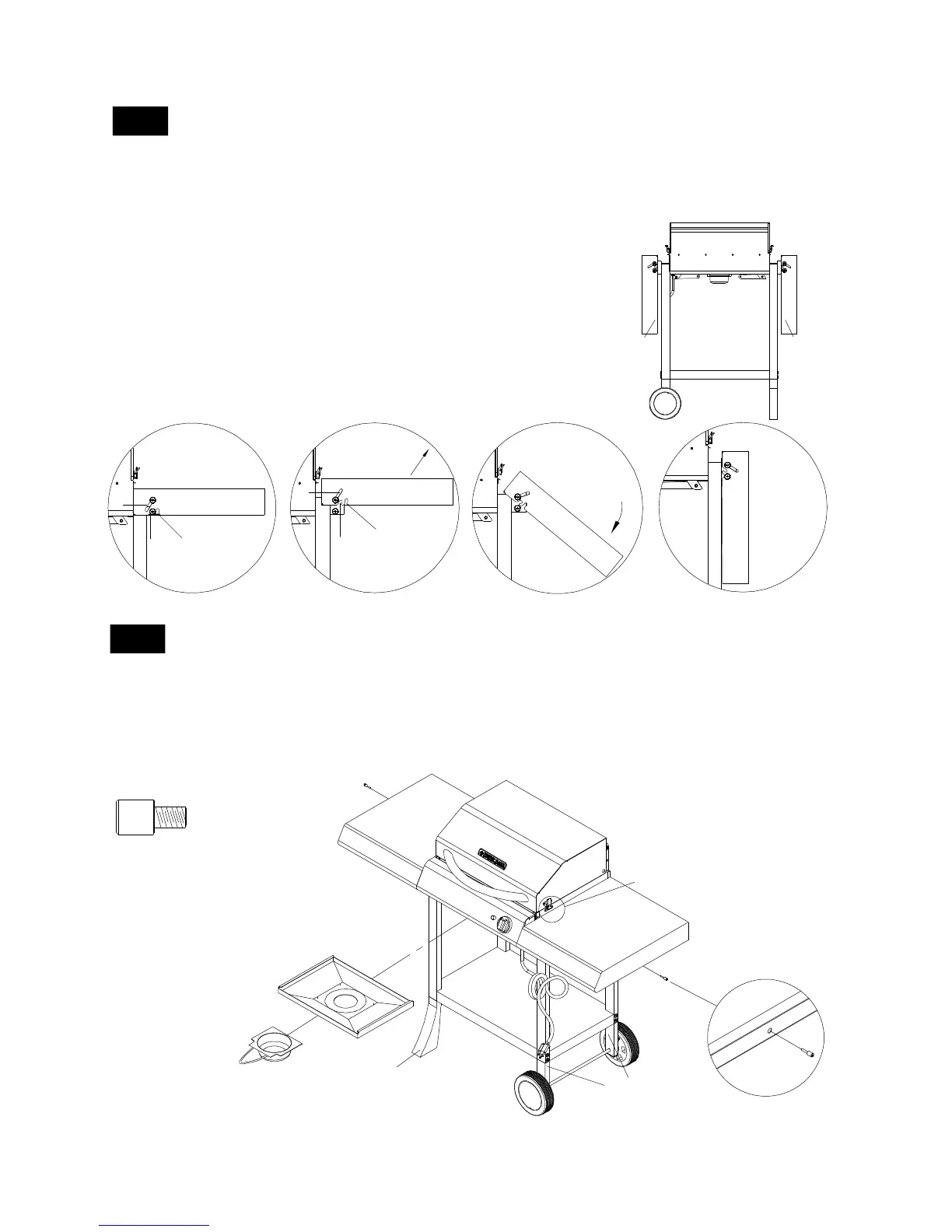

Install Grease Tray and Grease Receptacle (Fig. 9)
Fig. 9
1.
4.
3.
2.
Grease Tray
Grease
Receptacle
Grill Head
Lower Left
Cart Legs
Right Side
Shelf
Left Side
Shelf
Cart Bottom
Shelf
Lower Right
Cart Legs
Upper/Lower
Lid Latches
7-2
Fold-Away Side Shelf Option (Fig. 8)
1.
3.
2.
4.
For illustration purposes - Rear View of the Left Side Shelf
Fig. 8
Left Side
Shelf
Right Side
Shelf
1.
A
B
C
2.
LIFT SIDE SHELF
A
C
B
3.
SWING
SIDE
SHELF
DOWN
4.
SLIDE
SIDE
SHELF
ALONG
THE
SLOT
With both hands grab both sides of Left Side Shelf and lift to
dislodge it from the fixed position B slots.
Pull Left Side Shelf away from the grill head and release for
Fold Away option.
Then allow the Side Shelf to slide down along the slot C
until it comes to a stop.
Repeat for Right Side Shelf.
Slide the Grease Tray side tabs over Grease Tray Bracket side
rails underneath the Grill Bowl.
Secure Special Flat Head Screw 1/4 in. x 7/16 in. to
Grease Tray Bracket (Fig. 9)
The Grease Tray is required to be present and centered for
your safety.
Slide the Grease Receptacle over Grease Tray (attached
to underside of Grease Tray) until it rests in place.
