Perfect Flame LE1808CA - Page 10

10
7-1

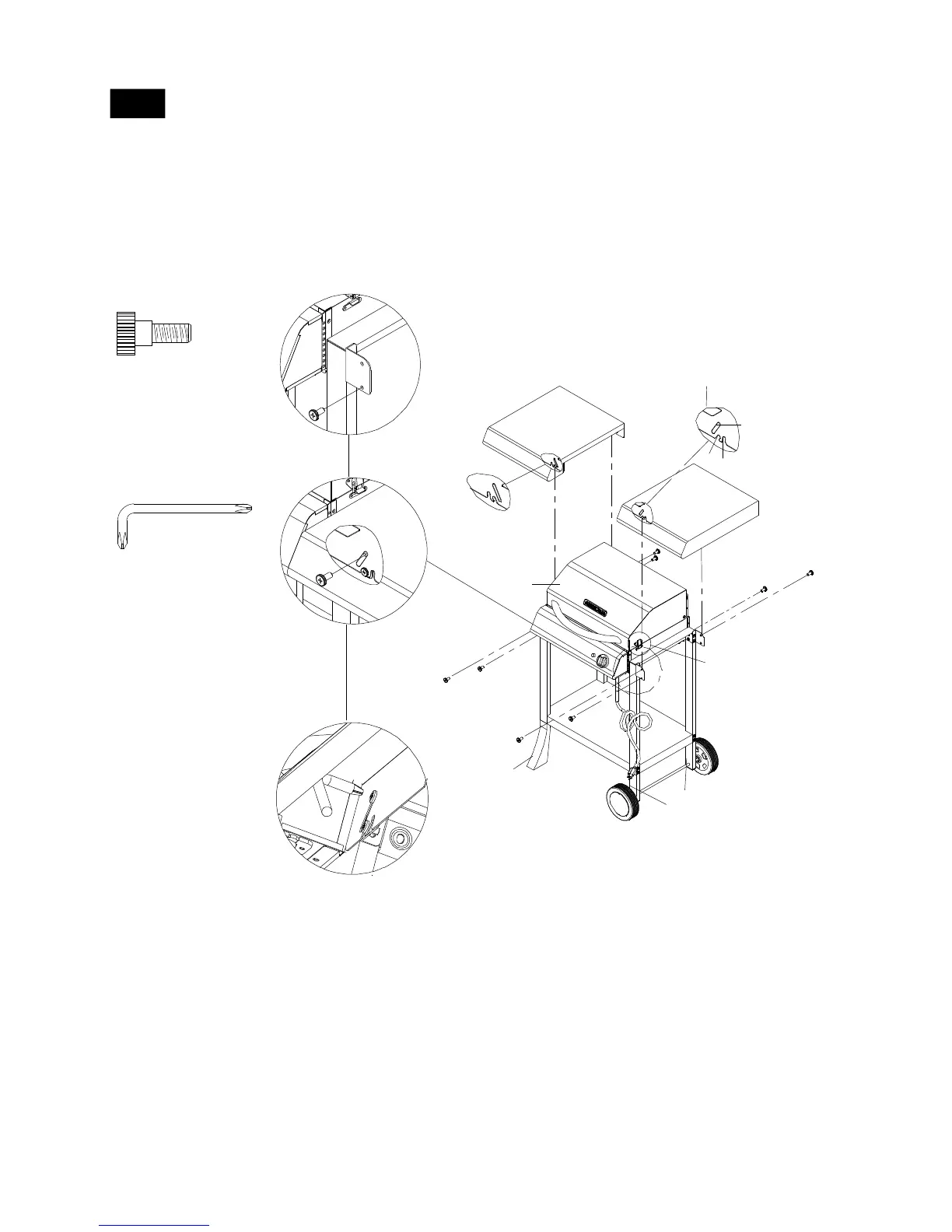

Install Side Shelf (Fig. 7)
1.
3.
2.
Pattern Head Screw
1/4 in. x 5/8 in.
Qty. 8
Part # S138G04104
4.
View from under the Right Side Shelf
Fig. 7
Right Side
Shelf
Cart Bottom
Shelf
Upper/Lower
Lid Latches
Lower Left
Cart Legs
Grill Head
Left Side
Shelf
Lower Right
Cart Legs
Hole inside the internal
upper panel frame
A
B
C
Fig. A
Fig. B
Fig. C
"L" Screwdriver
Qty. 1
Part # P05515020B
Scale: 1:2
Attach two Pattern Head Screws 1/4 in. x 5/8 in. to the lower holes
of the Right Side Shelf Brackets and tighten securely. (See Fig. A).
Align the slot B of the Right Side Shelf to the installed Pattern Head
Screws and secure the side shelf into position.
From the underside of the Side Shelf, insert one Pattern Head Screw
1/4 in. x 5/8 in. into the front Side Shelf Bracket, (see Fig. B). Then
tighten securely using a "L" Screwdriver provided. (See Fig. C).
From the underside of the Side Shelf, insert one Pattern Head Screw
1/4 in. x 5/8 in. into the rear Side Shelf Bracket and tighten securely.
Repeat for Left Side Shelf.
