2 Product Information

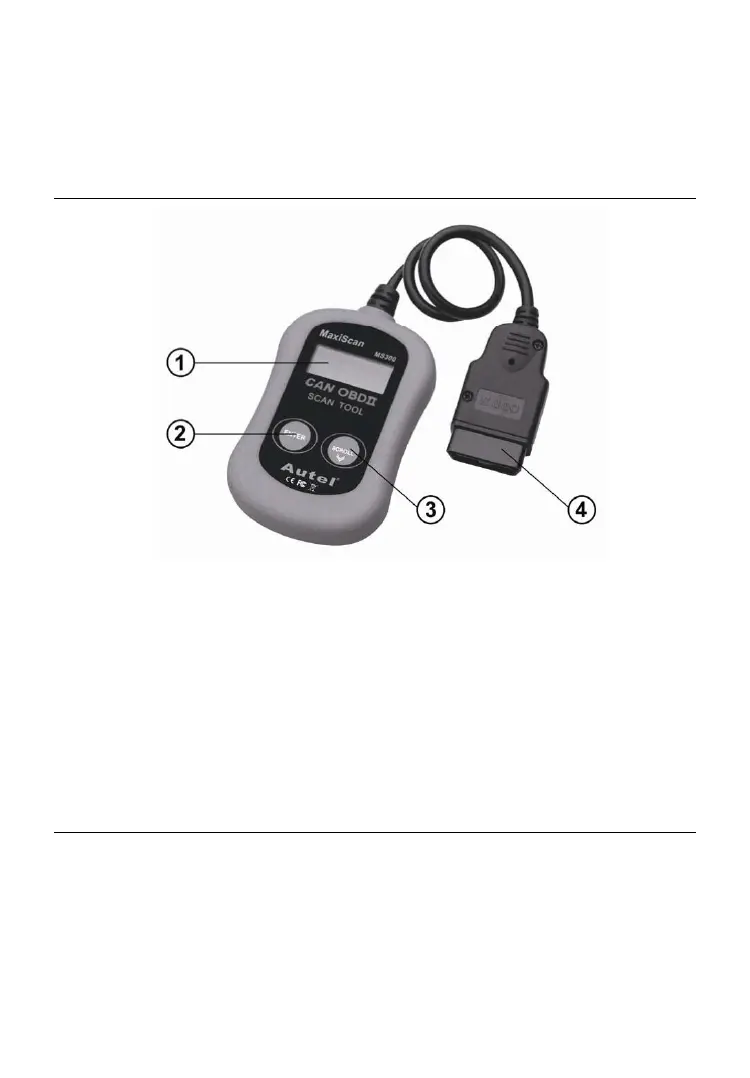

Tool Description
1. LCD DISPLAY – indicates test results. It is a backlit 2-line display
with 8 characters on each line.
2. ENTER BUTTON – confirms a selection (or action) from a menu list,
or returns to the main menu.
3. SCROLL BUTTON – scrolls through menu items or cancel an
operation.
4. OBD II CONNECTOR – connects the Code Scanner to the
vehicle’s Data Link Connector (DLC).
Product Specifications
1) Display: backlit LCD, 2 lines, 8 characters each
2) Operating Temperature: 0 to 50°C (32 to 122 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) Power: DC12V provided via the vehicle’s battery
5) Dimensions:
Length: 113 mm (4.4”) Width: 74 mm (2.9” ) Height: 21 mm (0.83”)
