39 Return Spring *1
40 Lock Washer 4
41 Nut 6
44 Caster Wheel Assy. *2
47 Right Side Member 1
48 Flat Washer 2
49 Lock Washer 2
50 Nut 2
51 Front Wheel Spacer 2
52 Front Wheel 2
53 Flat Washer 2
54 Front Wheel Spindle 1
55 Body Spindle 1
58 Left Side Member 1
60 Radius Link 2
61 Retaining Ring 2
62 Lifting Arm 1
63 Cross Head Pin 1
64 C 19 Retaining Ring 1
65 Lifting Arm Spindle 1
67 Saddle Assembly 1
68 Radius Link Pin 1
69 Snap Ring 2
70 Pump Handle *1
72 Cover Plate 1
73 Support Bar 1
*Notes the replaceable parts
# Description Qty. # Description Qty. # Description Qty.
Replacement Parts

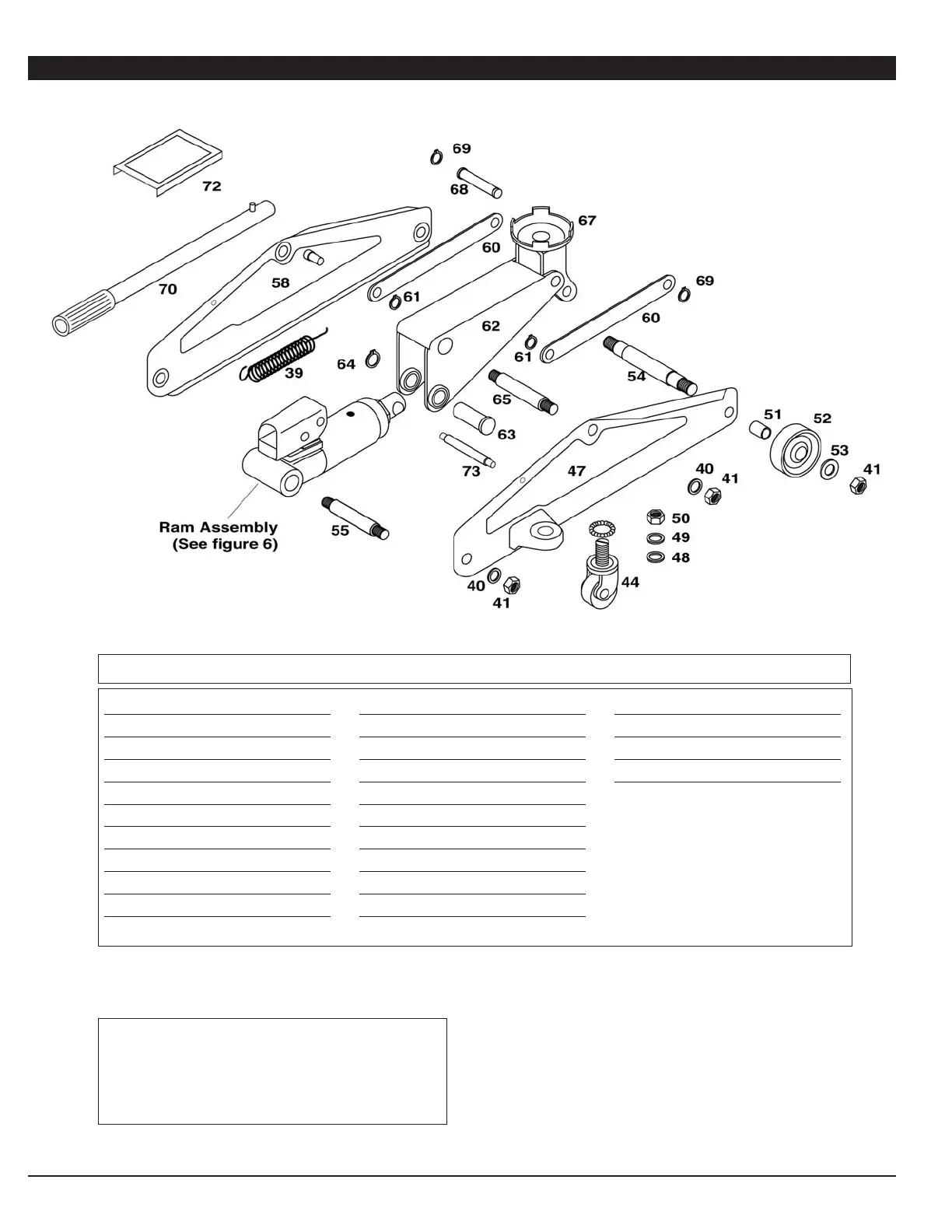

JACK ASSEMBLY
Figure 4
W1605CK . . . . . . . . . . .Ram Repair Kit
W1605-39 . . . . . . . . . . . .Return Spring
W1605-44 . . . . . . . . . .Caster Assembly
W1605-70 . . . . . . . . . . . .Pump Handle
