Performance Tool W1626 User Manual

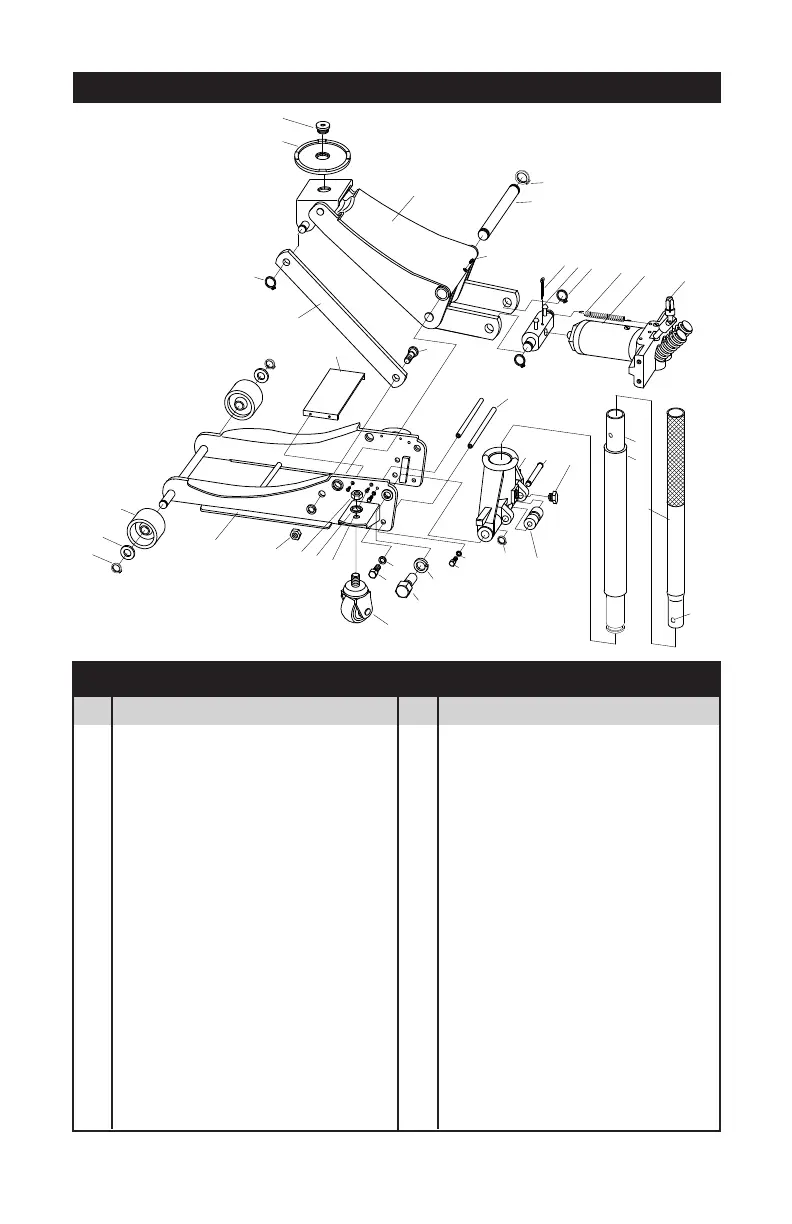

EXPANDED PARTS DIAGRAM
EXPANDED PARTS LIST
1 Retaining Ring (20) ................... 2
2 Washer (20) .............................. 2
3 Front Wheel ..............................2
4 Frame ....................................... 1
5 Nut (M16) Oblate ......................2
6 Nut (M16) .................................2
7 Washer (M16) ........................... 4
8 Screw (M5 X 12) ....................... 4
9 Rear Caster .............................. 2
10 Screw (M10 x 20) .....................4
11 Washer (10) ..............................4
12 Bolt ...........................................2
13 Washer (18) ..............................2
14 Screw (M8 X 20 ........................ 4
15 Washer (8) ................................4
16 Retaining Ring (12) ................... 1
17 Roller ........................................ 1
18 Handle Socket .........................1
19 Roller Pin ..................................1
20 Handle Release Bolt.................1
21 Upper Handle ......................... 1
22 Foam Bumper ........................ 1
23 Lower Handle ......................... 1
24 Handle Lock Button ............... 1
25 U-Joint ................................... 1
26 Hydraulic Unit ........................ 1
27 Spring ..................................... 2
28 Retaining Ring (25) ................. 4
29 Hydraulic Unit Adapter ........... 1
30 Pin (A4 X 55) ........................... 1
31 Lift Arm Shaft ......................... 1
32 Zerk Fitting ............................. 1
33 Tie Rod ................................... 2
34 Radius Link Bolt ..................... 2
35 Cover Plate ............................ 1
36 Radius Link ............................ 2
37 Retaining Ring (16) ................. 2
38 Lift Arm ................................... 1
39 Saddle .................................... 1
40 Saddle Screw ......................... 1
No. Description Qty. No. Description Qty.
2
1
4
3
7
6
8
11
9
10
12
13
17
16
18
19
20
21
22
24
35
40
38
39
31
29
30
28
27
28
26
25
23
33
14
15
34
32
36
37
5

Performance Tool W1626 Specifications

General

Brand	Performance Tool
Model	W1626
Category	Jacks
Language	English
