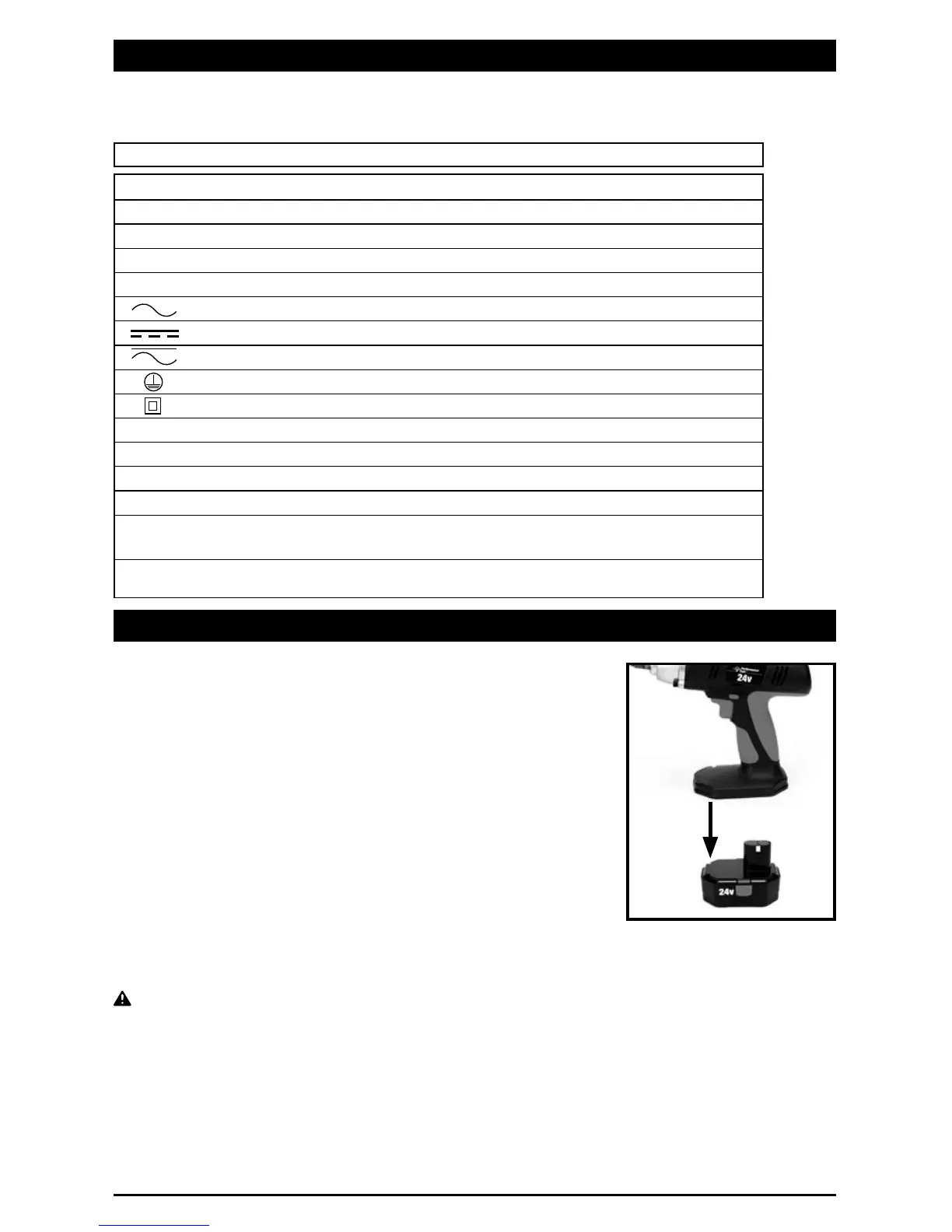

5
IMPORTANT:
Some of the following symbols may be used on your tool. Please study them and learn
their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL DEFINITIONS
V Volts Voltage (Potential)
A Amperes Current
Hz Hertz Frequency (Cycles per Second)
W Watt Power
Kg Kilograms Weight
Alternating Current Type of Current
Direct Current Type of Current
Alternating or Direct Current Type of Current
Earthing Terminal Grounding Terminal
Class II Construction Denotes Double Insulation
min Minutes Time
s Seconds Time
Ø Diameter Size of Drill Bits, Grinding Wheels, etc.
n
0 No load speed No-load Rotational Speed
.../min Revolutions per Minute Revolutions, Surface Speed,
Strokes, etc. per Minute
1,2,3,... Ring Selector Settings Speed, Torque or Position Settings
Symbol Name Explanation
BATTERY PACK INSTALLATION
TO REMOVE BATTERY PACK:
1. Press release button on front side of the Cordless Impact
Wrench to release the battery pack.
2. Pull battery pack free of Cordless Impact Wrench.
TO ATTACH BATTERY PACK:
1. Align the raised portion of the battery pack with the
groove in the battery compartment of the Cordless Impact
Wrench.
2. Press the battery pack into place. Make sure the latch
is securely fastened. Do not use the Cordless Impact
Wrench if the battery pack is not seated properly.
BATTERY PACK CHARGING OPERATIONS
NOTICE The charger will not
automatically turn “OFF” when the
battery pack is fully charged. The
charging indicator light will remain “ON”
until the charger is disconnected from
the electrical outlet. Remove battery
pack from charger and disconnect
charger from power after 5 hours of
charging operation Overcharging can
overheat battery cells and cause
permanent damage to the battery pack
and charger kit.
1. Make sure the trigger on the Cordless
Impact Wrench is in the “OFF” position
and remove the battery pack from the
Cordless Impact Wrench.
BATTERY PACK USAGE AND CHARGING OPERATIONS
Figure 1
