Platform Connection CB 160
Translation of the Original Instructions for Use
Application
Wall side
Guardrail side
Dismantling
1. Release Nuts (5) M20 (SW 30).
2. Remove Hex. Bolts (4) M20 (SW 30)
from the angle plate (3) and Climbing
Bracket CB 160 (7).
3. Check individual components for signs
of damage.
4. Dispose of unusable components.
5. Insert bolts through the angle plate (3)
and mount nuts (5).
(Fig. 13)
During the dismantling of the platform
connections, site personnel must wear
personal protective equipment.

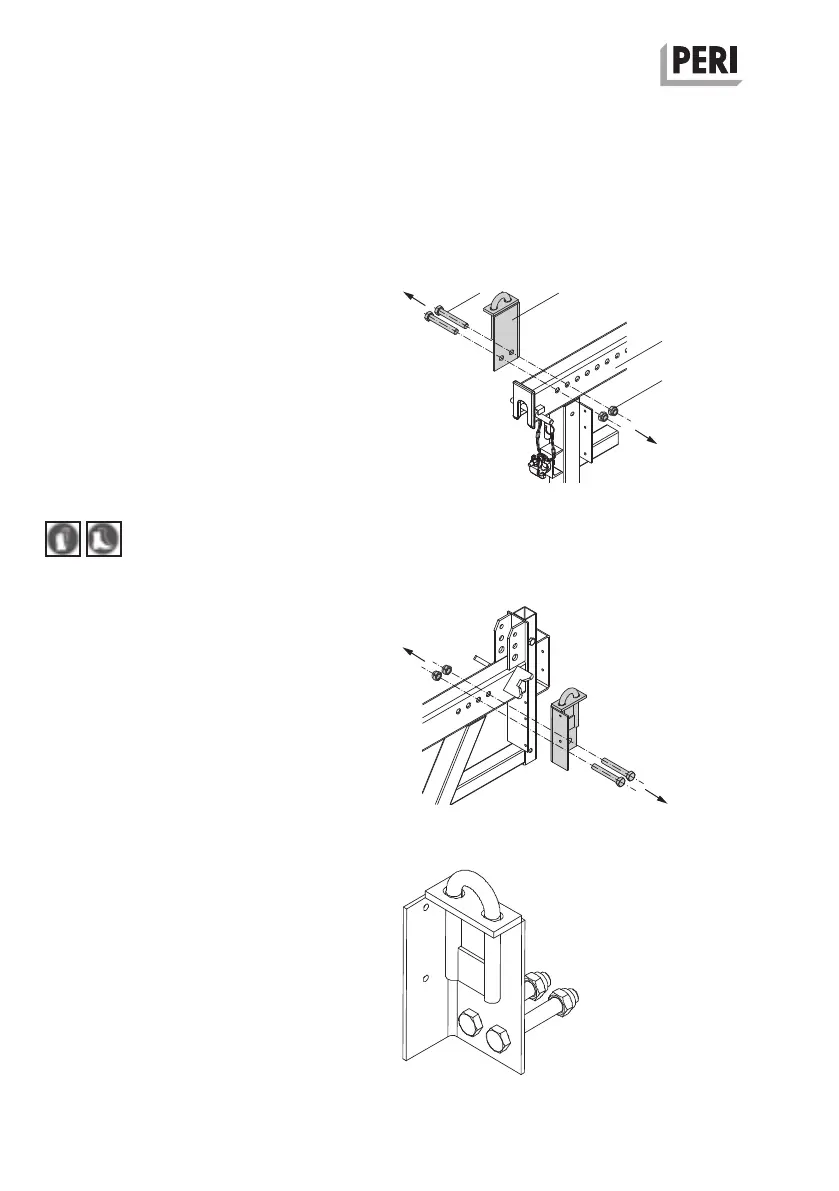

Fig. 11
Fig. 12
Fig. 13
