Peri CB 160 - Assembly of Adjusting Unit CB 160; Assembly of Guardrail Post CB

12
5
3
4
7
Platform Connection CB 160
Translation of the Original Instructions for Use
Application

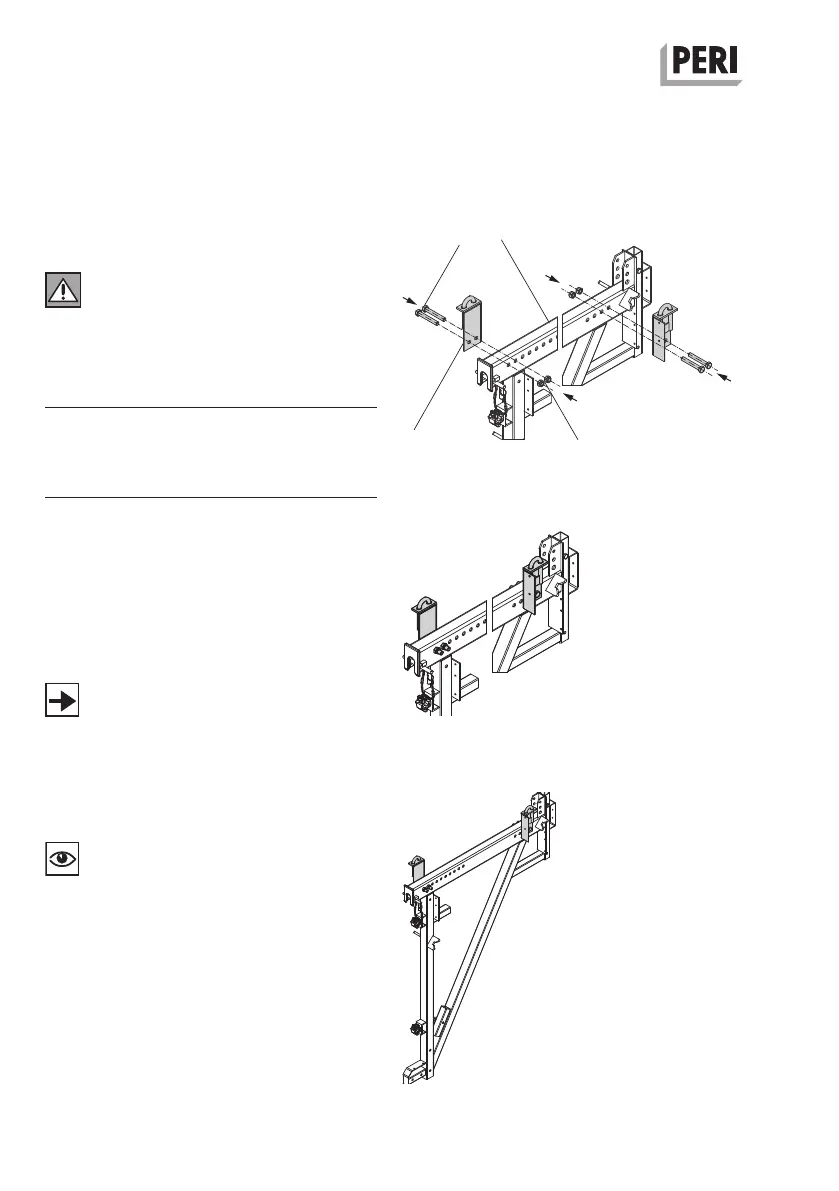

Fig. 5
Assembly
Important
Always attach two Platform Connec-
tions CB 160 to the Climbing Bracket
CB 160!
5 Nut ISO 7042 M20-8, galv. 4x
3 Angle plate 2x
4 Hex. Bolt ISO 4014 4x
M20 x 130-8.8, verz.
1. Release Nuts (5) M20 (SW 30).
2. Attach two Hex. Bolts (4) M20 (SW 30)
through the angle plate (3) and CB 160
Climbing Bracket (7) on the left and
right sides. (Fig. 7)
3. Tightly screw on nuts (5).
Take the correct installation situation of
different assembly versions into account!
See Assembly Instructions for Climbing
Formwork CB 160.
Check the connection of the Platform
Connection CB 160 to the Climbing
Bracket CB 160:
– dimensional stability,
– undamaged components,
– no missing components.
Fig. 6
Fig. 7
