Application
Platform Connection CB 160
Translation of the Original Instructions for Use

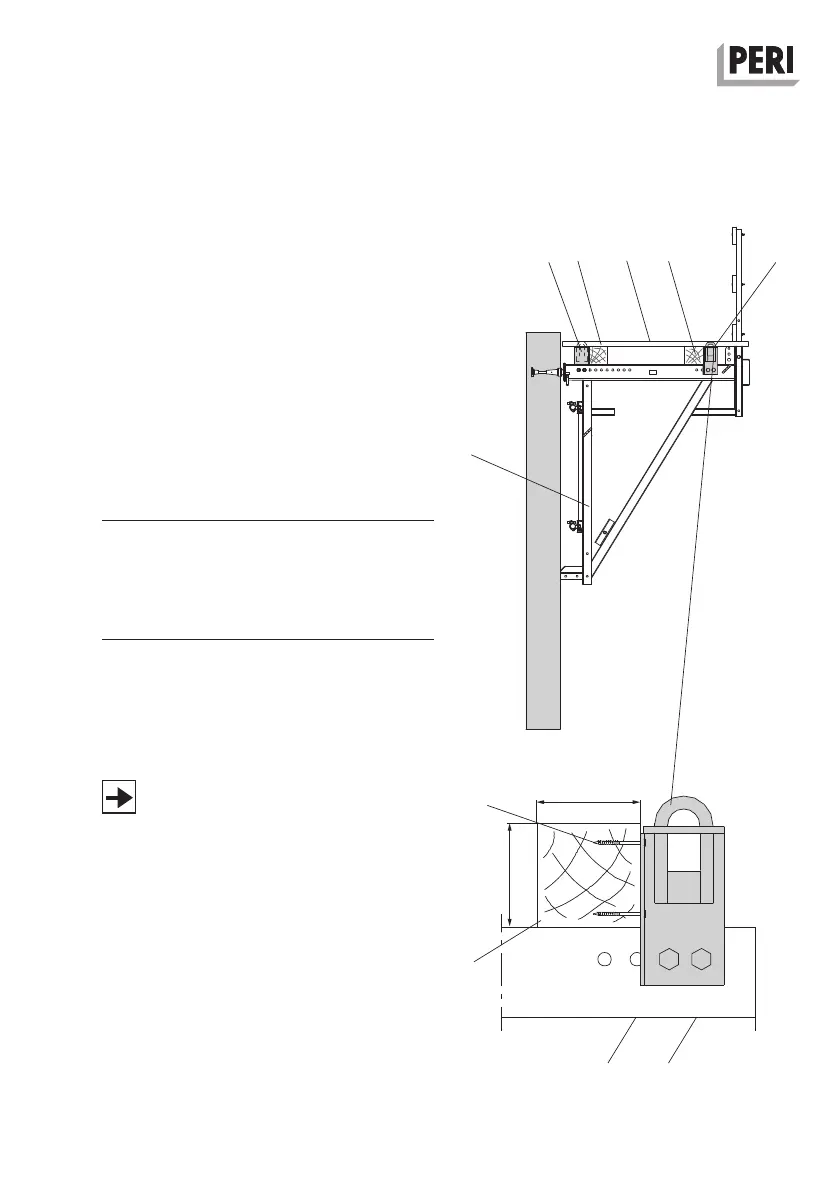

Fig. 8a
Assembly versions
Position of the Platform Connection
CB 160:
– on the Climbing Bracket CB 160 (7).
– inner wall side (11a).
– external guardrail side (11b).
– under the platform decking (9).
Assembly of the sub-structure
The following components are required
for the sub-structure:
8 Height of timber h = 160 mm
Width of timber b = variable
2x
8.1 Hex. wood screws 6 x 60 DIN
571 (per Platform Connection
CB 160)
8x
Mount timbers on the angle plate (3) of
the Platform Connection CB 160 by
means of two wood screws (8.1).
(Fig. 8 – 8a)
Assembly of the working scaffold or the
working platform, as well as the choice of
timber dimensions (h × b), are described
in the Climbing Formwork CB 160 assem-
bly instructions.
Fig. 8
