Platform Connection CB 160
Translation of the Original Instructions for Use
Application
Mounting on climbing formwork
Attention
– Crane slings should not be attached
to the Climbing Platforms CB 160
on assembled formwork, otherwise
there is a risk of tipping. (Fig. 9)
– If the lifting gear is incorrectly
attached to the climbing formwork,
this can result in staff injury or
damage of the materials!
– Attach climbing formwork to be
moved (moving unit comprises
formwork with platform) to the top
end of the strongback (11)!
– Remove Platform Connection CB 160
before assembling the strongback
(11) in order to prevent any misap-
plication. (Fig. 9b + 9c)
The Platform Connection CB 160 (Fig. 9a)
can be attached to the Platform Bracket
CB 160 (7) for positioning the working
platform on the building. The Platform
Connections CB 160 are subsequently
removed.

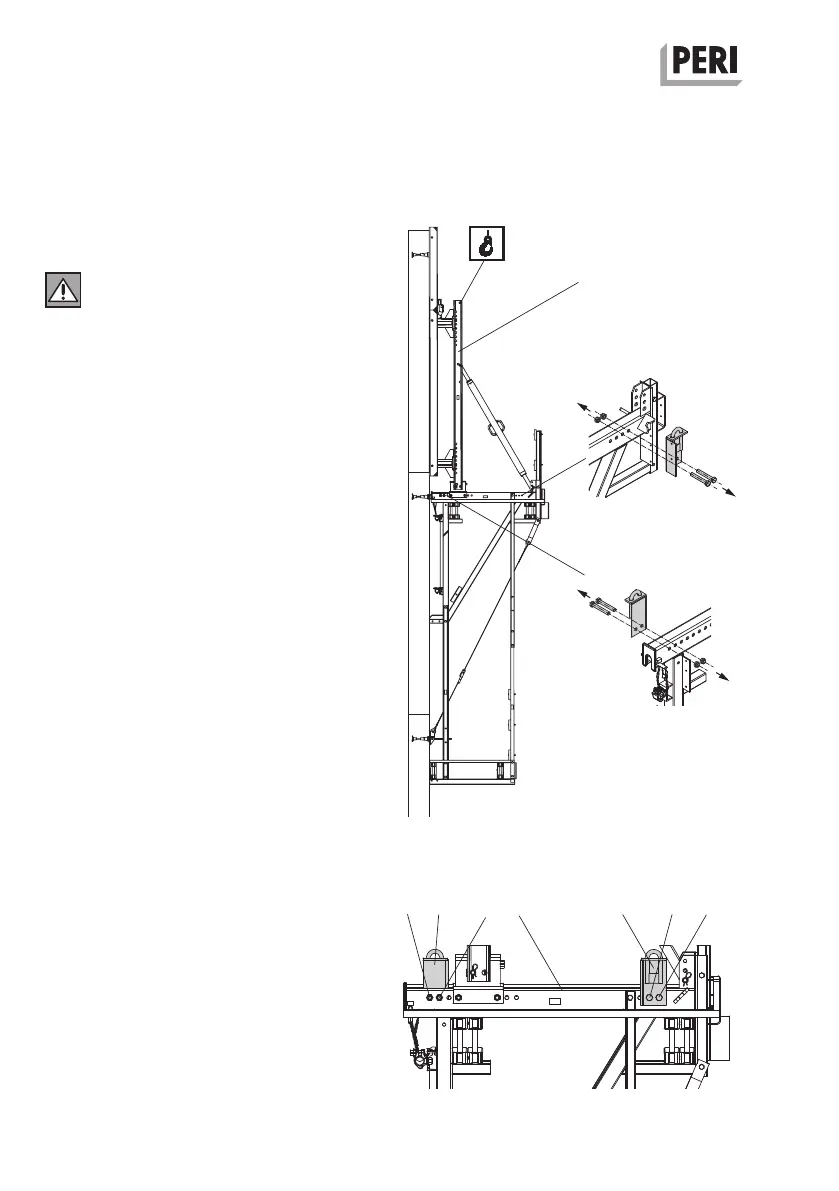

Fig. 9a
Fig. 9
Fig. 9b
Fig. 9c
