PerkinElmer LAMBDA 265 Assembly/Installation Instructions

09931295C
11

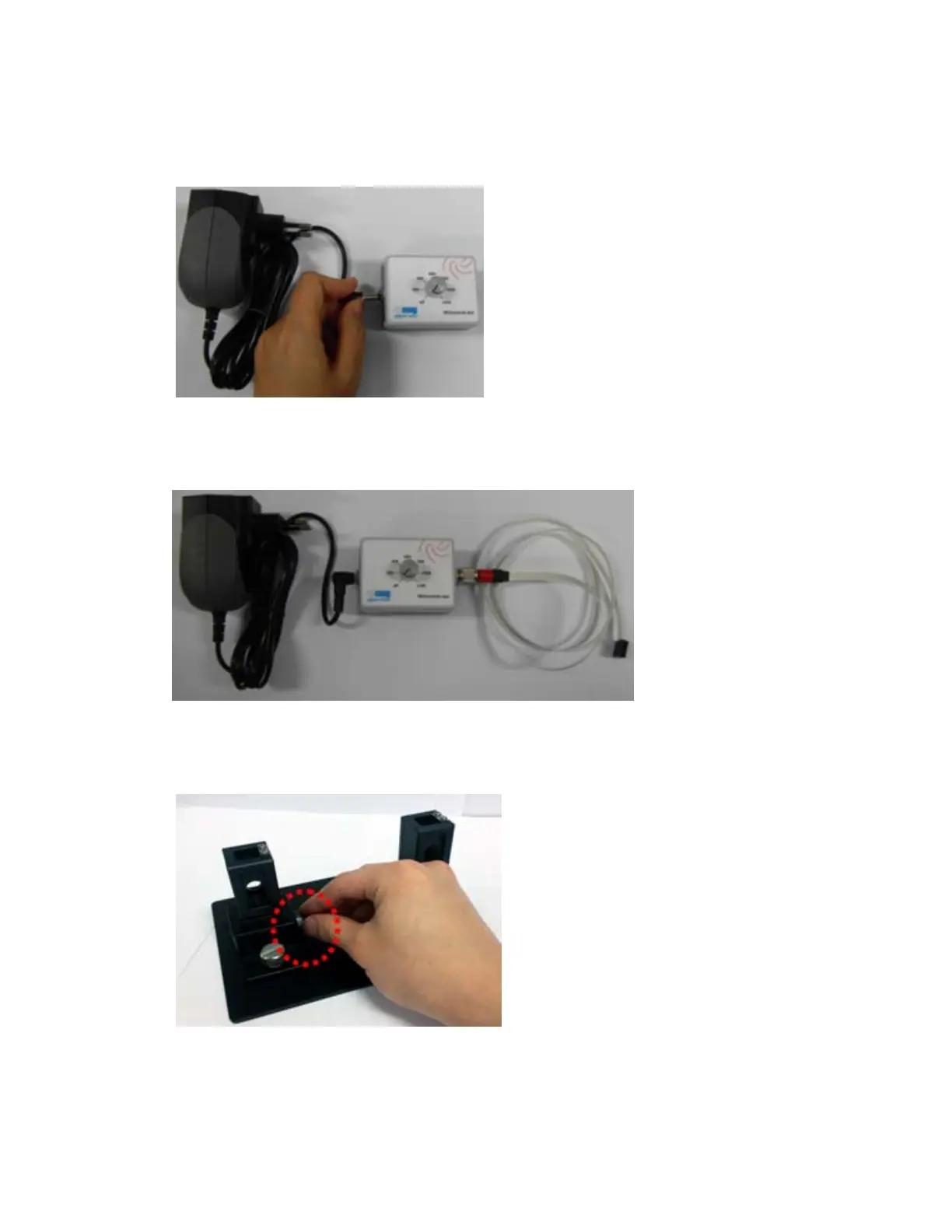

Connect to the Micro Cell Holder
1. Connect the plug of the power cable to the power input socket of the control unit.
Figure 19 Connecting the plug of the power cable
2. Connect the stirrer control cable to the 4-pin socket of the control unit.
Figure 20 Connecting the stirrer control cable
3. Loosen the top-to-bottom adjustment knob by hand.
Figure 21 Loosen the top-to-bottom adjustment knob
