09931295C
17

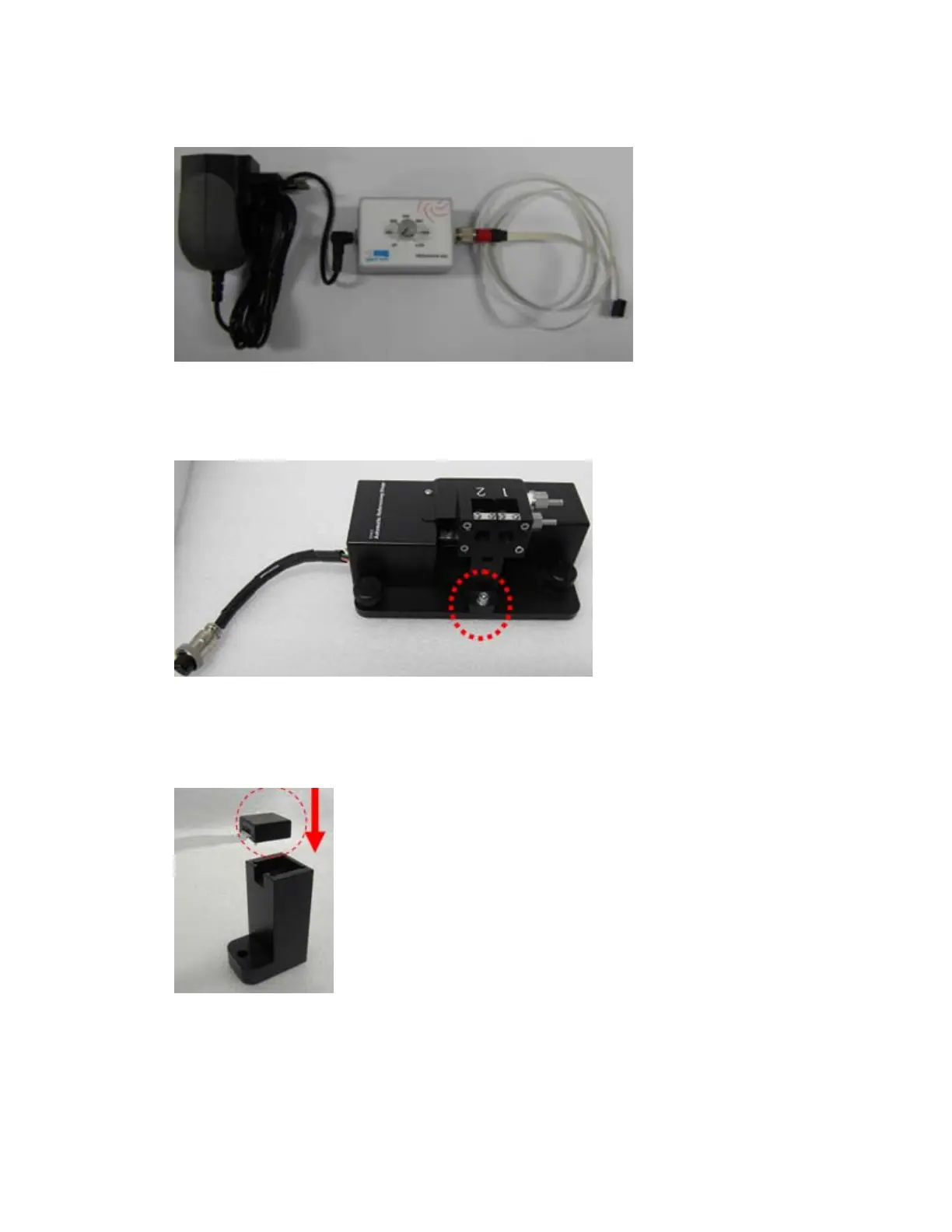

2. Connect the stirrer control cable to the 4-pin socket of the control unit.
Figure 36 Connecting the stirrer control cable
3. Using the M4 wrench, remove the screw of the water jacketed automatic referencing stage and
disassemble the stirrer mount.
Figure 37 Removing the screw
4. Place the magnetic stirrer head on the stirrer mount of the water jacketed automatic referencing
stage.
Figure 38 Placing the magnetic stirrer head on the stirrer mount
