PerkinElmer Lambda 465 Assembly/Installation Instructions

09931295C
12
4. Using the M3 wrench, remove the screw in the micro cell holder and disassemble the holder.

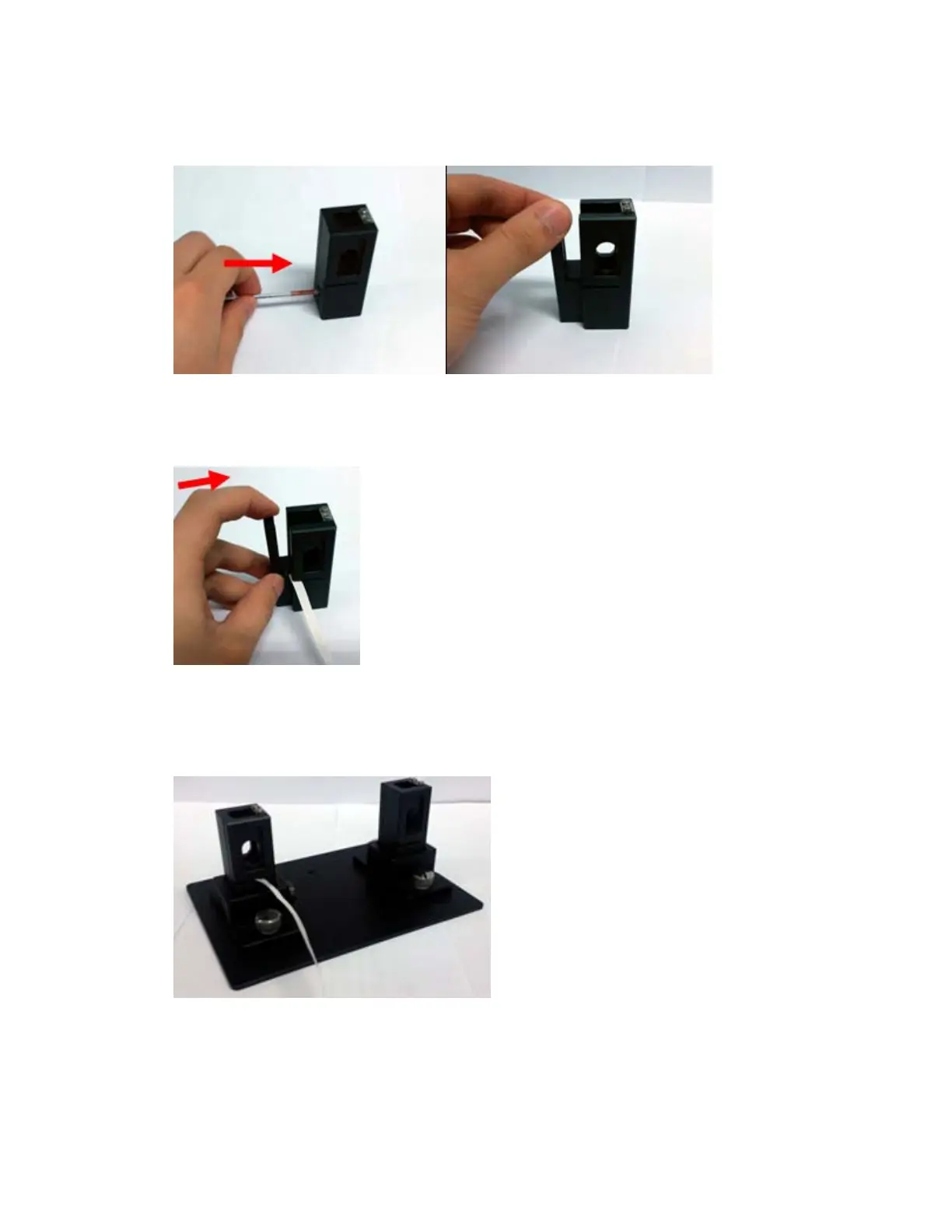

Figure 22 Removing the screw
5. Insert the stirrer head of the stirrer control cable into the micro cell holder.
Figure 23 Inserting the stirrer head
6. Tighten the screw using the M3 wrench and reassemble the micro cell holder to the base plate.
Be careful that the stirrer cable does not block the light beam path to the cell holder.
Figure 24 Tightening the screw
