PerkinElmer Lambda 465 Assembly/Installation Instructions

09931295C
15
Connect to the 8 Cell Water Jacketed Cell Change

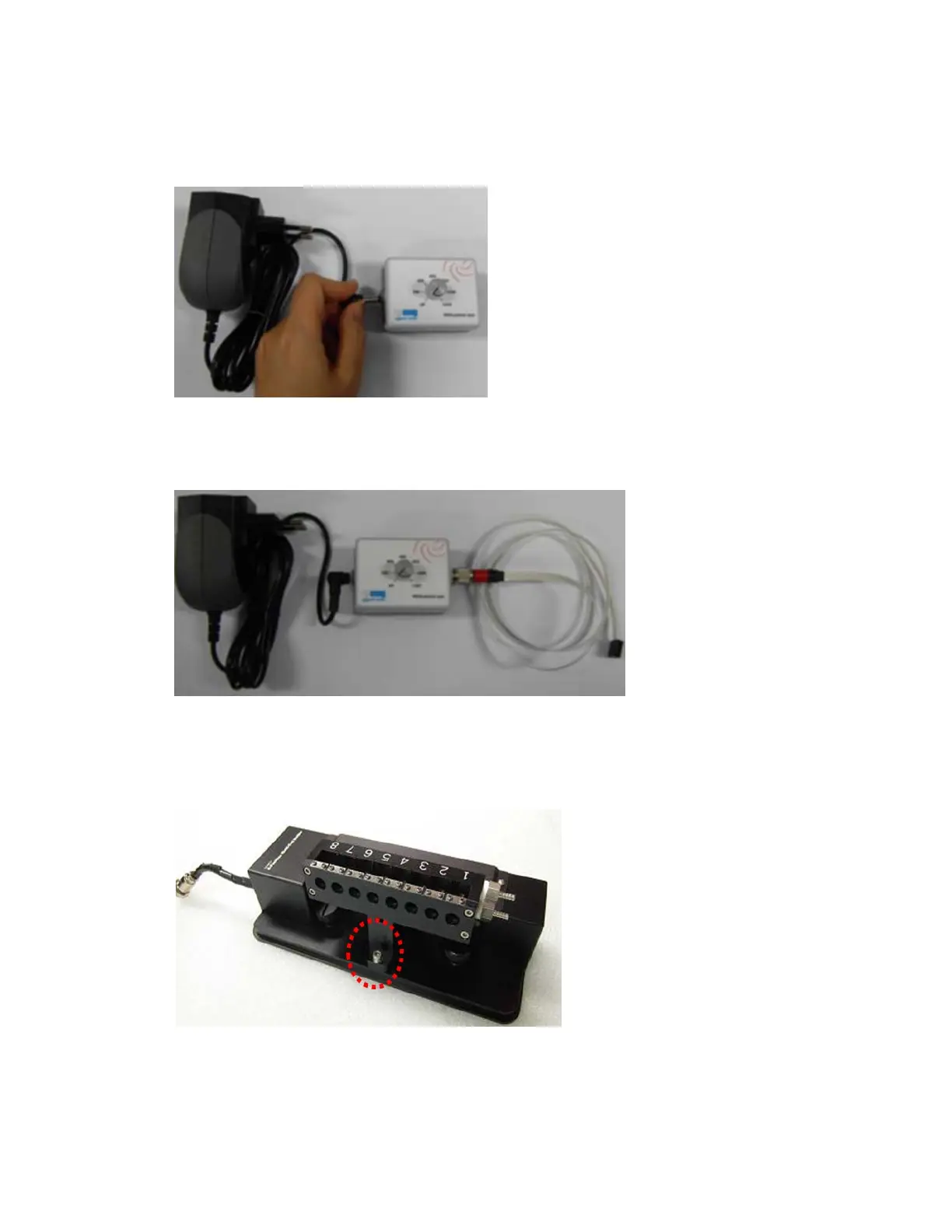

1. Connect the plug of the power cable to the power input socket of the control unit.
Figure 30 Connecting the plug of the power cable
2. Connect the stirrer control cable to the 4-pin socket of the control unit.
Figure 31 Connecting the stirrer control cable
3. Using the M4 wrench, remove the screw of the 8 cell water jacketed cell changer and disassemble
the stirrer mount.
Figure 32 Removing the screw
