PerkinElmer Lambda 465 Assembly/Installation Instructions

09931295C
9
Connect to the Water Jacketed Single Cell Holder
1. Connect the plug of the power cable to the power input socket of the control unit.

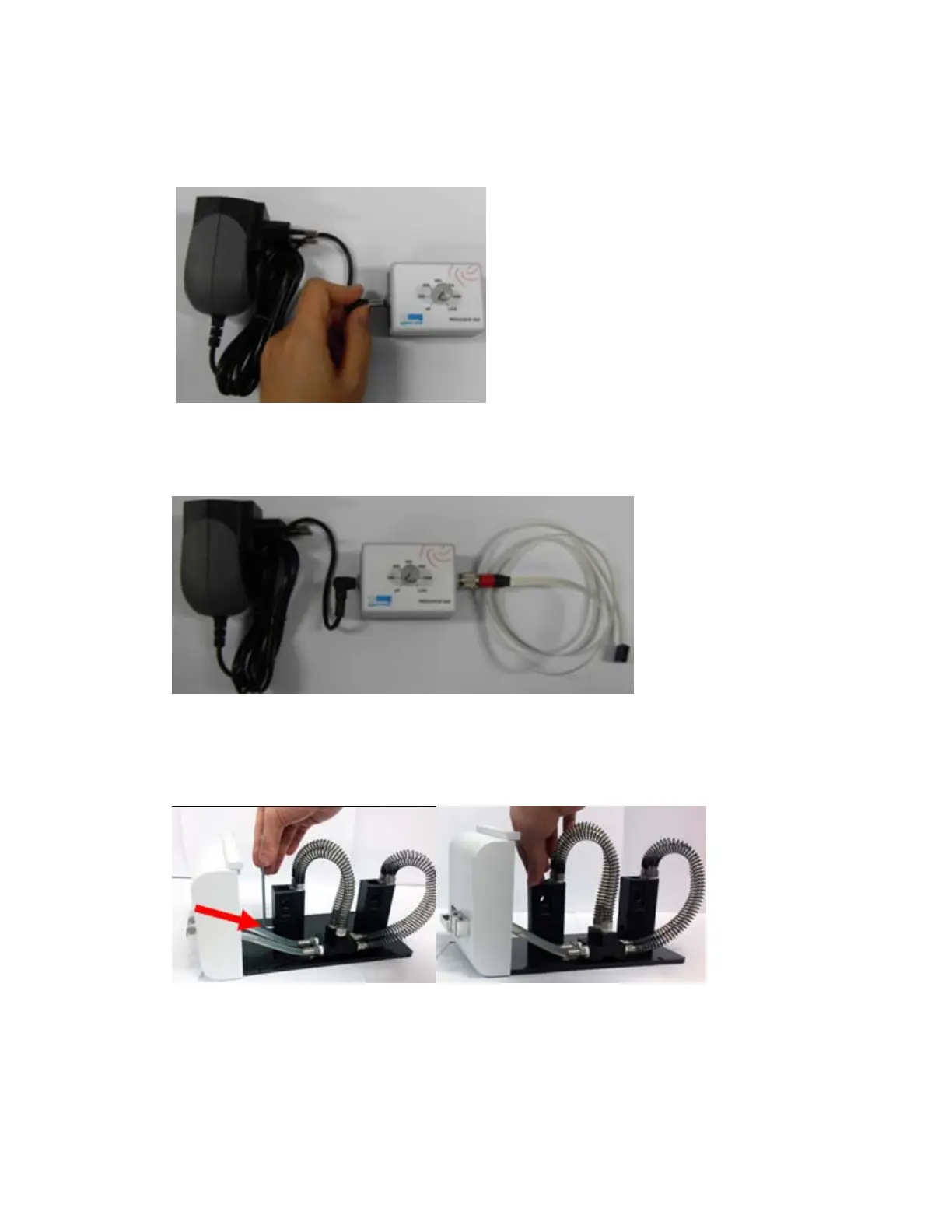

Figure 13 Connecting the plug
2. Connect the stirrer control cable to the 4-pin socket of the control unit.
Figure 14 Connecting the stirrer control cable
3. Using the M3 wrench, remove the screw in the water jacketed single cell holder and disassemble
the holder.
Figure 15 Removing the screw
