PerkinElmer Lambda 465 Assembly/Installation Instructions

09931295C
8

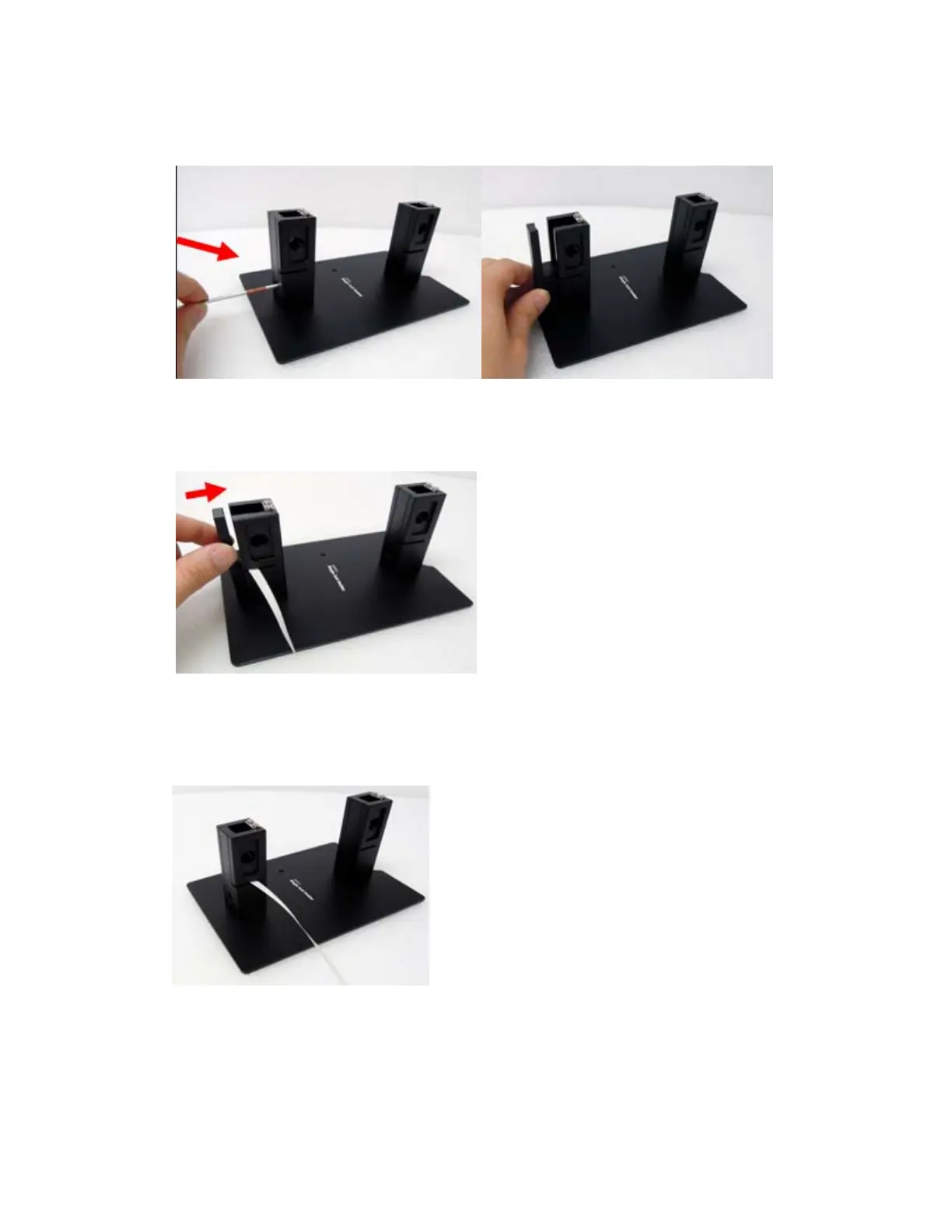

3. Using the M3 wrench, remove the screw in the single cell holder and disassemble the holder.
Figure 10 Removing the screw
4. Insert the stirrer head of the stirrer control cable into the single cell holder.
Figure 11 Inserting the stirrer head
5. Assemble the single cell holder with the stirrer head inserted, and tighten the screw using the M3
wrench.
Figure 12 Assembling the single cell holder
