Engine Views

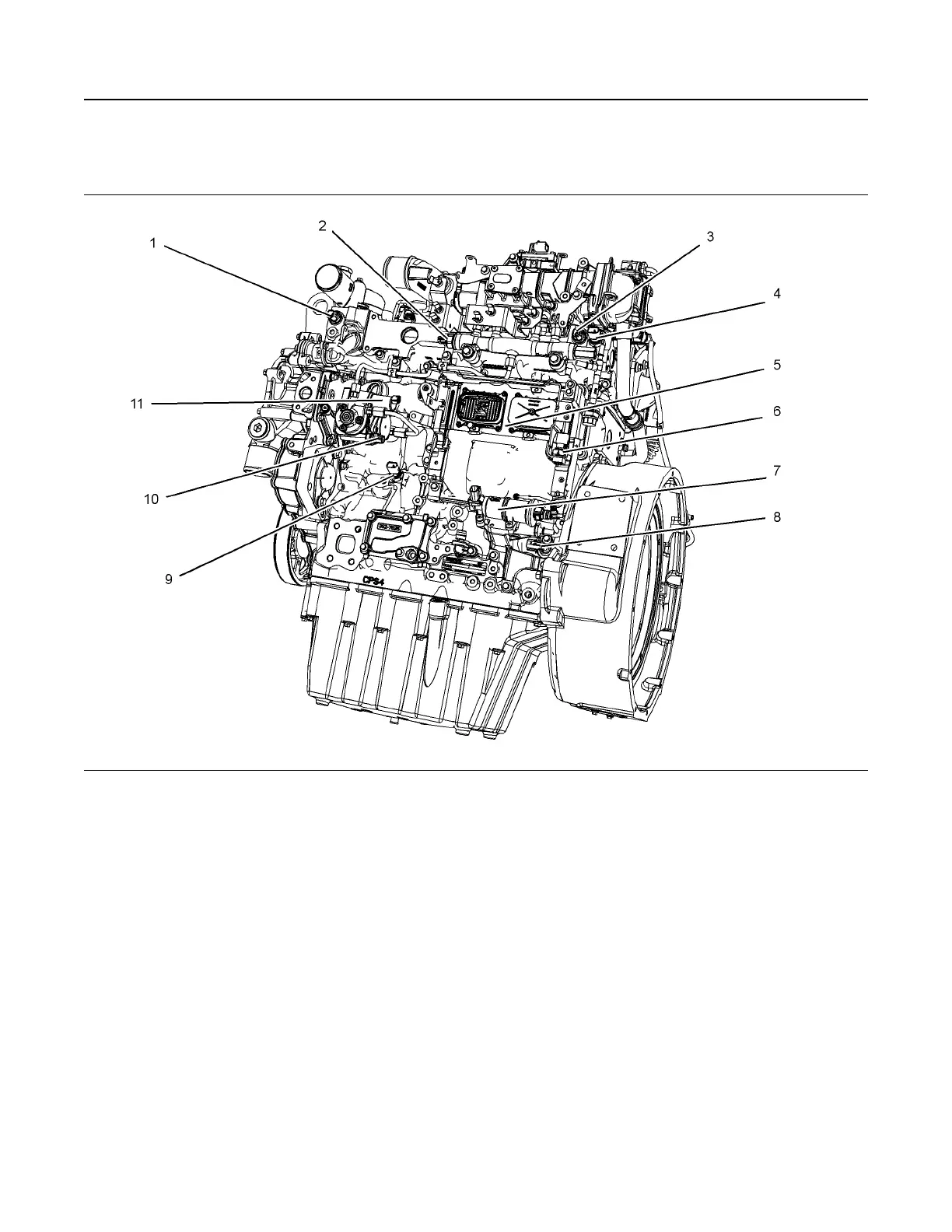

Illustration 39 g03419999
Typical example
(1) Coolant Temperature Sensor
(2) Fuel Pressure Sensor (Fuel Rail
Pressure Sensor)
(3) Intake Manifold Air Temperature Sensor
(4) Intake Manifold Pressure Sensor
(5) Electronic Control Module (ECM)
(6) Atmospheric Pressure Sensor
(Barometric Pressure Sensor)
(7) Priming/ Transfer pump
(8) Primary Speed/Timing sensor
(Crankshaft Position Sensor)
(9) Oil Pressure Sensor
(10) Fuel Temperature Sensor
(11) Fuel Metering Solenoid for the High
Pressure Fuel Pump
54
SEBU9063-07
Operation Section
Sensors and Electrical Components
