DOC, DPF, and SCR

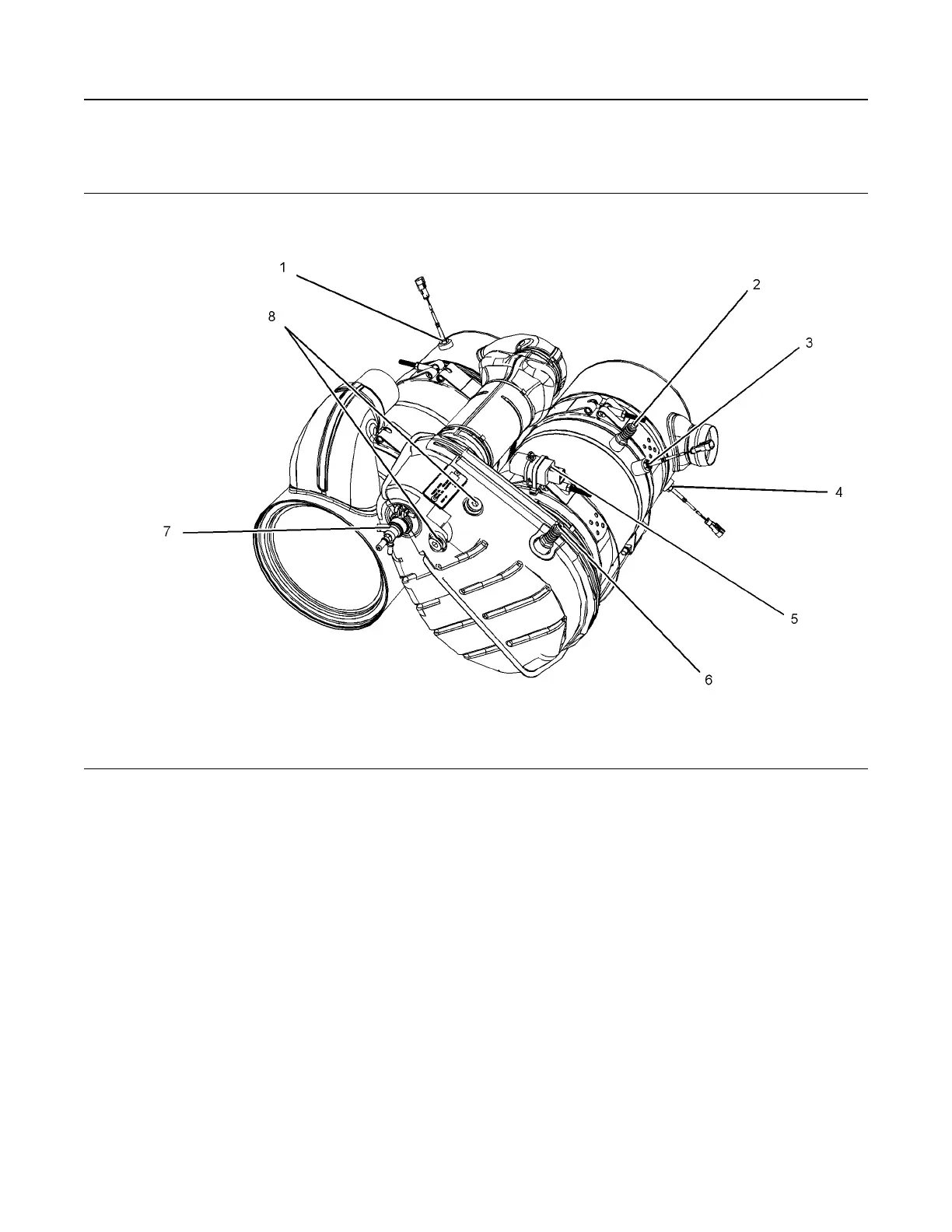

Illustration 48 g03713372
Typical example
(1) SCR Temperature Sensor
(2) Soot Sensor Connection
(3) DPF Temperature Sensor
(4) DOC Temperature Sensor
(5) Identification Module
(6) Soot Sensor Connection
(7) DEF Injector
(8) NOx Sensor location
