Note: The NOx sensor (8) can be installed in only
one location, the location will depend on the
application.
Sensors and Aftertreatment
Components

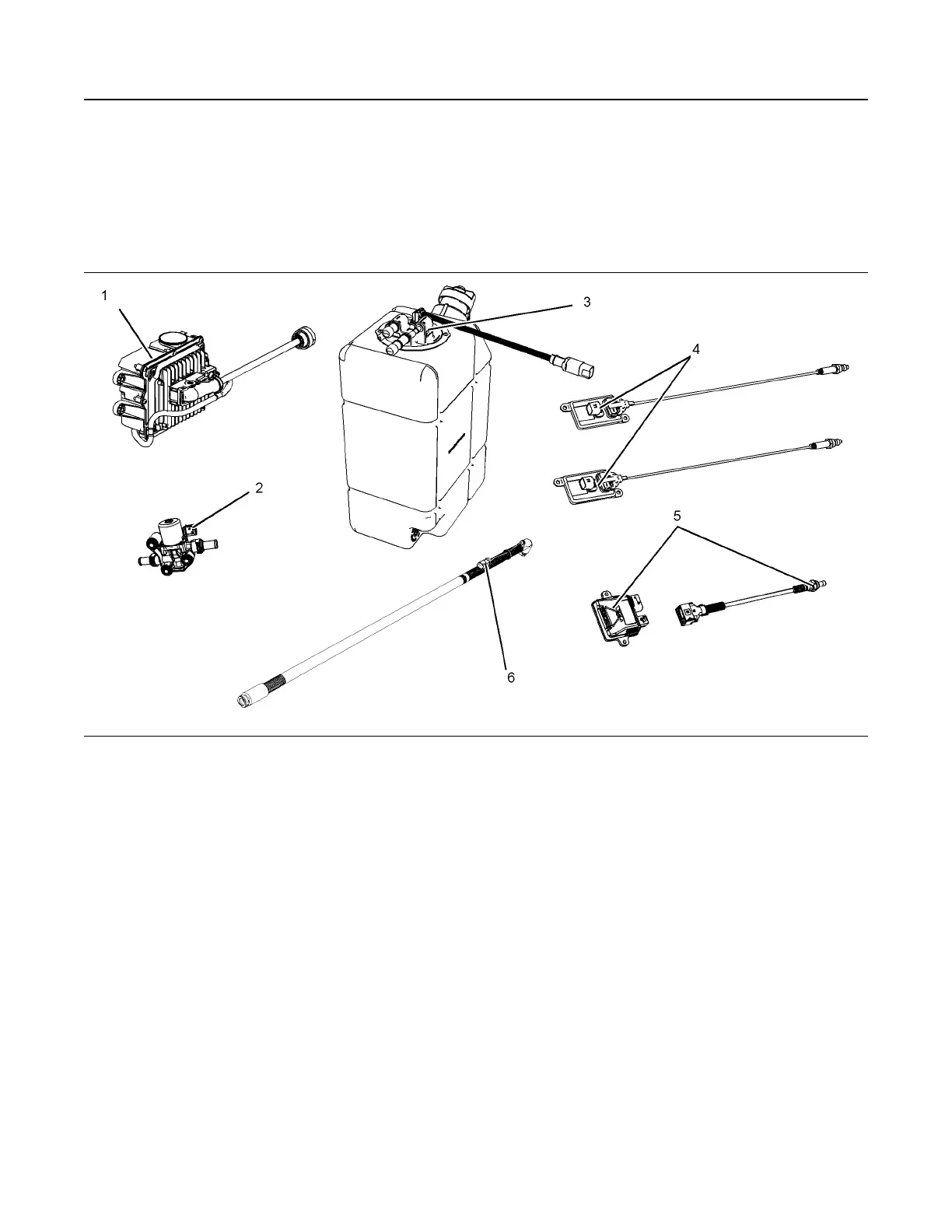

Illustration 49 g03659936
Typical example
(1) DEF Pump and electronic unit
(2) Coolant Diverter Valve
(3) DEF Tank level and Temperature Sensor
(4) NOx Sensors
(5) Ammonia Sensor and Control
(6) Heated DEF Line
62
SEBU9063-07
Operation Section
Sensors and Electrical Components
