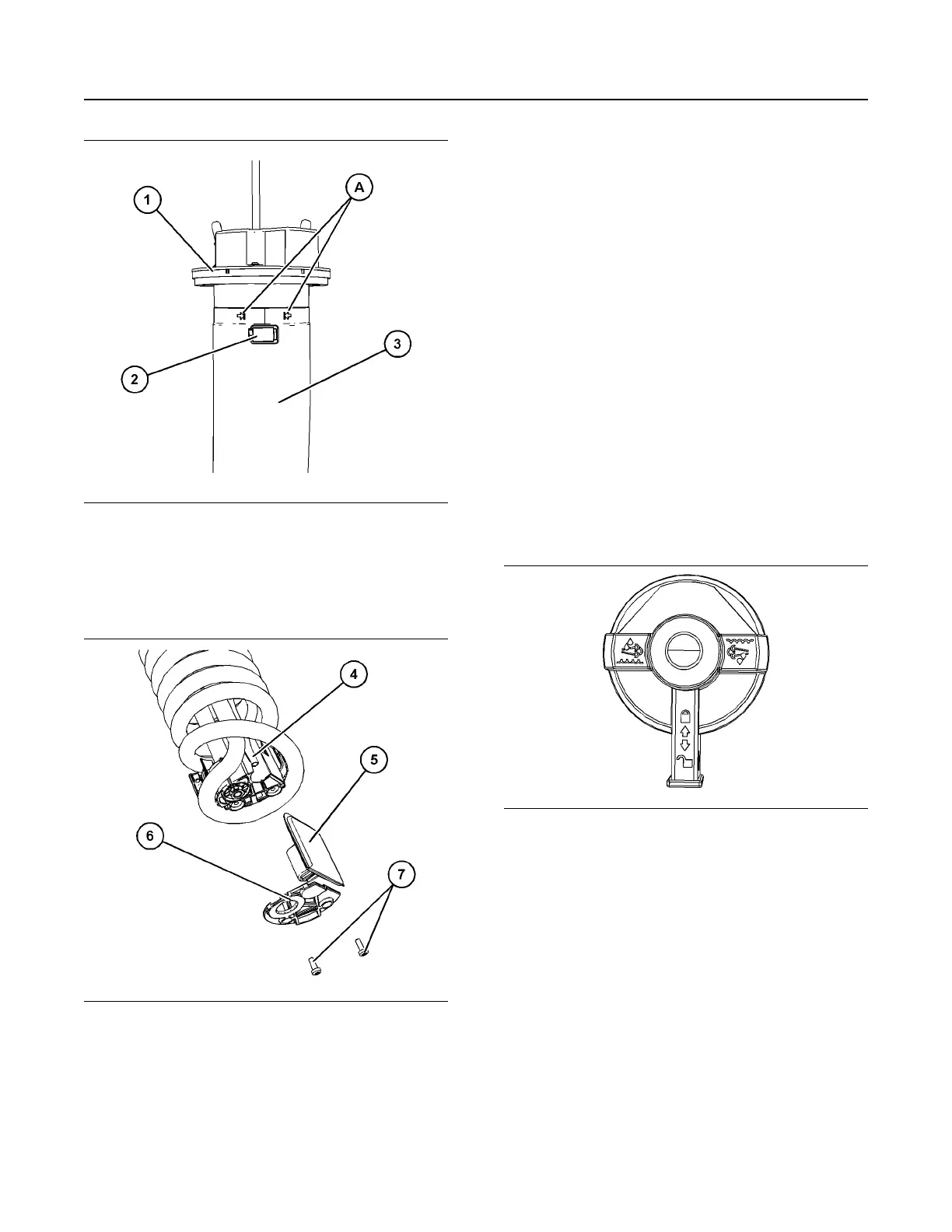

Illustration 92 g06159487
1. Note the location of clamp (2). The clamp (2) must
be between the marked location (A).
2. Loosen clamp (2) and remove outer filter (3) from
DEF tank header (1) and discard outer filter (3).
Illustration 93 g06159580
3. Remove screws (7) and remove retaining plate (6).
4. Remove DEF filter (5) from pickup tube (4) and
discard the used filter (5).
5. Install new filter (5) onto pickup tube (4).
6. Install the retaining plate (6) and install screws (7).
Tighten screws (7) to a torque of 1.1 N·m
(9.8 lb in).
7. Install new outer filter (3) onto DEF tank header
(1). Ensure that the clamp (2) is located between
the location points (A).
8. Tighten clamp (2) to a torque of 4.5 N·m (40 lb in).
9. Install the DEF tank header, refer to Disassembly
and Assembly, Manifold (DEF Heater) - Remove
and Install.
i07297213
Diesel Exhaust Fluid
(Emission Related
Component) - Fill
Refer to the original equipment manufacture
information for the Diesel Exhaust Fluid (DEF) tank
capacity.
Illustration 94 g03379943
Lockable type DEF Filler cap
M0087475-06 105
Maintenance Section
Diesel Exhaust Fluid (Emission Related Component) - Fill
