Product Information
Section
General Information
i06838242
Model View Illustrations
The following model views show typical features of
the engine. Due to individual applications, your
engine may appear different from the illustrations.
Engine views

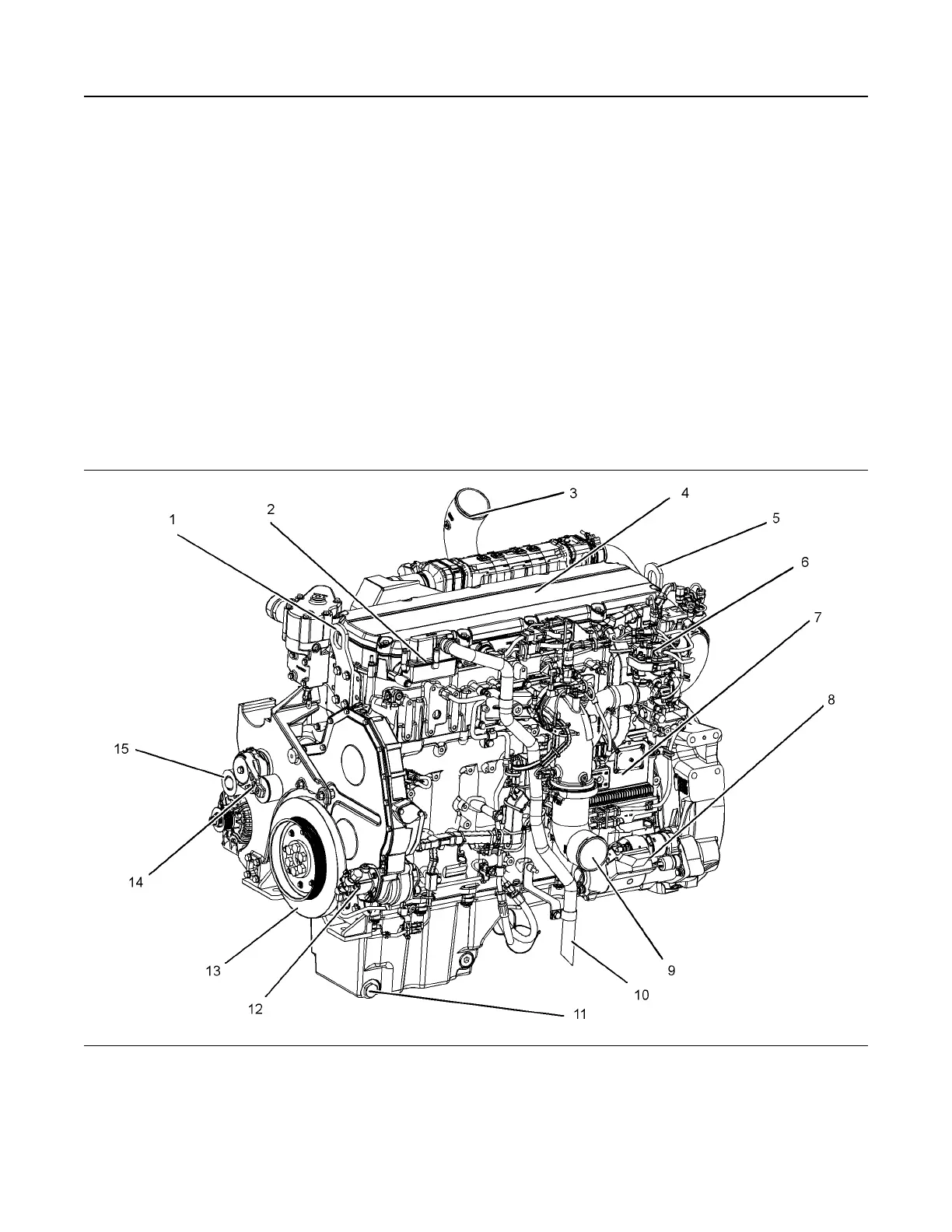

Illustration 13 g03809306
(1) Engine front lifting eye
(2) Breather
(3) Turbocharger elbow air out to air charge
cooler
(4) Valve mechanism cover
(5) Engine rear lifting eye
(6) NOx Reduction System (NRS) valve
(7) Electronic control module
(8) Starting motor
(9) Air intake elbow from air charge cooler
(10) Breather outlet pipe
(11) Oil drain plug
(12) Fuel transfer pump
(13) Crankshaft vibration damper
(14) Auto tensioner for drive belt
(15) Idler roller for drive belt
SEBU9071-01
17
Product Information Section
General Information
