Maintenance Section
Refill Capacities
i06093491
Refill Capacities
Refer to this Operation and Maintenance Manual
,
“Fluid Recommendations” for information about the
fluids which are acceptable for this engine.
Lubricant Refill Capacity

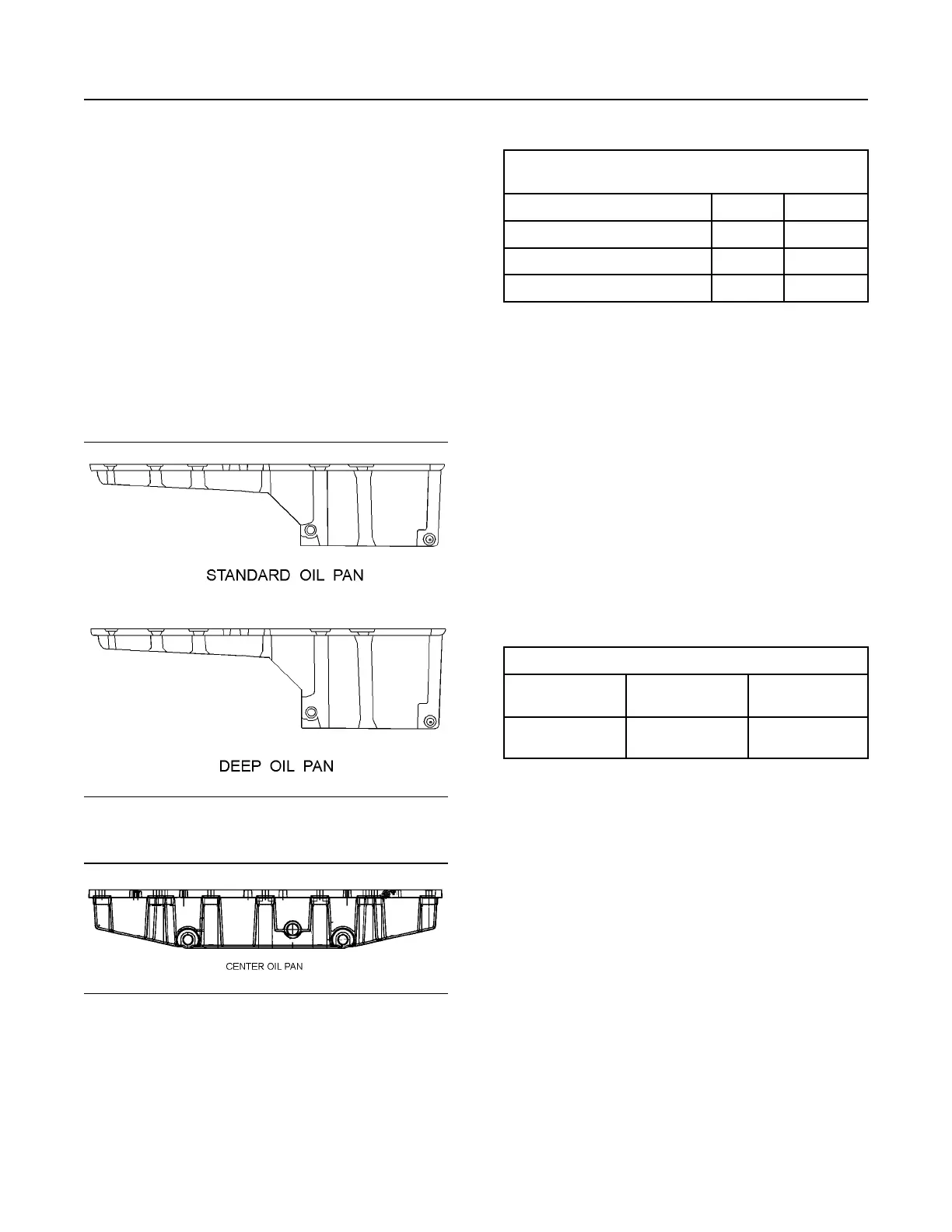

Illustration 58 g02293575
Standard and deep oil pans
Illustration 59 g02289293
Center oil pan
Table 5
2206 Industrial Engine
Approximate Refill Capacities
Oil Sump
(1)
Liters
Quarts
Standard Oil Pan
32 L
33.8 qt
Deep Oil Pan
37 L
39.1 qt
Center Oil Pan
30 L
31.7 qt
(1)
These values are approximate capacities for the crankcase oil
sump which include the standard oil filters that are installed at
the factory. Engines with auxiliary oil filters will require addition-
al oil. Refer to the OEM specifications for the capacity of the
auxiliary oil filter.
The refill capacities for the engine crankcase reflect
the approximate capacity of the crankcase or sump
plus standard oil filters. Auxiliary oil filter systems will
require additional oil. Refer to the OEM specifications
for the capacity of the auxiliary oil filter.
Coolant Refill Capacity
To maintain the cooling system, the total cooling
system capacity must be known. The capacity of the
total cooling system will vary. The capacity will
depend on the size of the radiator (capacity). Table 6
should be completed by the customer for the
maintenance of the cooling system.
Table 6
Approximate Capacity of the Cooling System
Compartment or
System
Liters
Quarts
Total Cooling System
(1)
(1)
The total cooling system capacity includes the following compo-
nents:the engine block, the radiator and all coolant hoses and
lines.
i05810173
Fluid Recommendations
(Diesel Exhaust Fluid (DEF))
General Information
Diesel Exhaust Fluid (DEF) is a liquid that is injected
into the aftertreatment system before Selective
Catalytic Reduction (SCR). This system of injecting
the DEF into the exhaust will reactor in the SCR
system. The Nitrogen Oxide (NOx) molecules in the
exhaust are converted to elemental nitrogen and
water. This conversion will reduce the emission of the
engine.
62
SEBU9071-01
Maintenance Section
Refill Capacities
