Clean Emissions Module with (ARD)

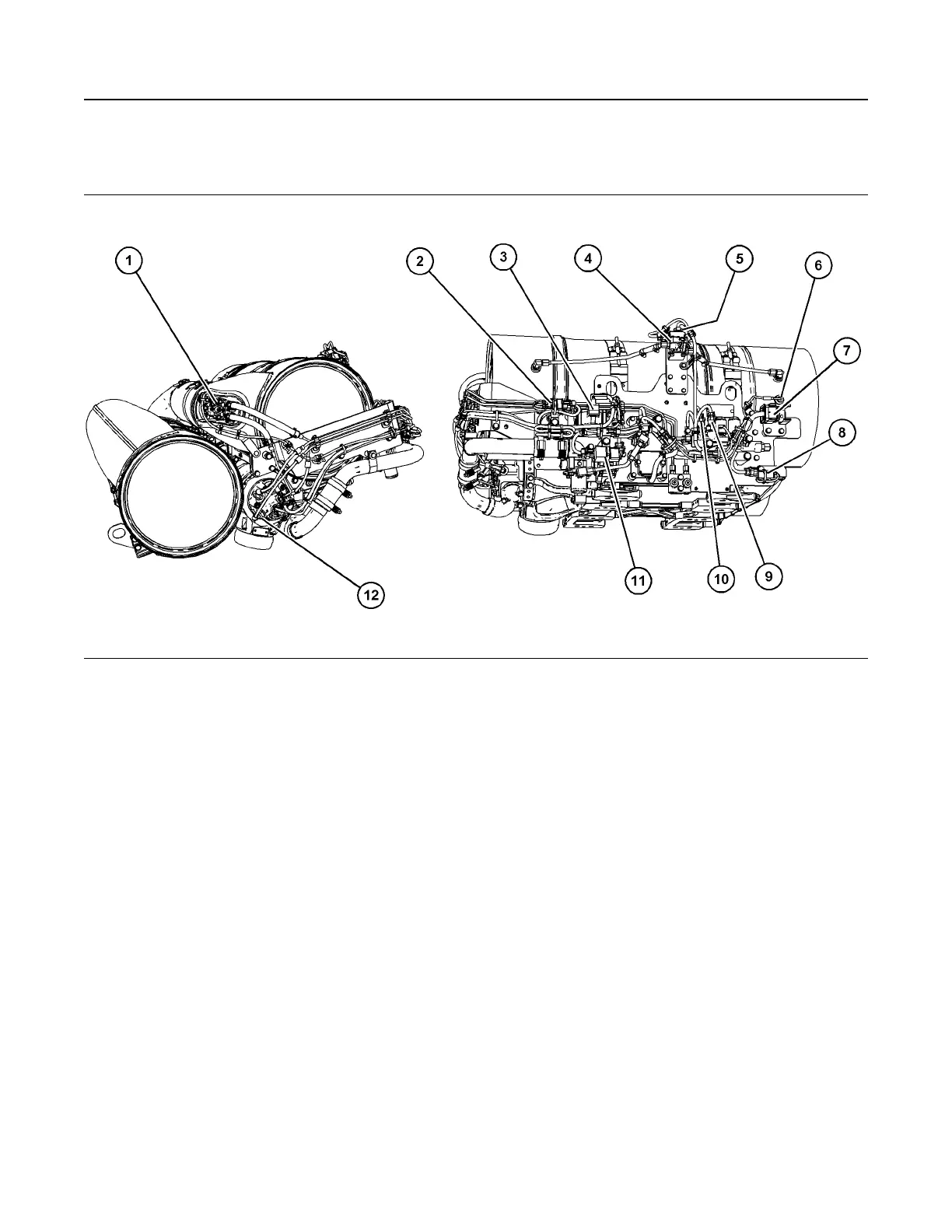

Illustration 37 g06048751
Typical example
(1) Diesel Exhaust Fluid (DEF) injector
(2) Temperature sensor
(3) Coil for spark plug
(4) Diesel Particulate Filter (DPF)
Differential pressure sensor
(5) DPF pressure sensor
(6) Temperature sender
(7) 40-Pin connector
(8) Selective Catalytic Reduction (SCR)
temperature sensor
(9) Fuel pilot pressure sensor
(10) Fuel main pressure sensor
(11) Identification Module
(12) Temperature sender for Aftertreatment
Regeneration Device (ARD)
38
SEBU9071-01
Operation Section
Sensors and Electrical Components
