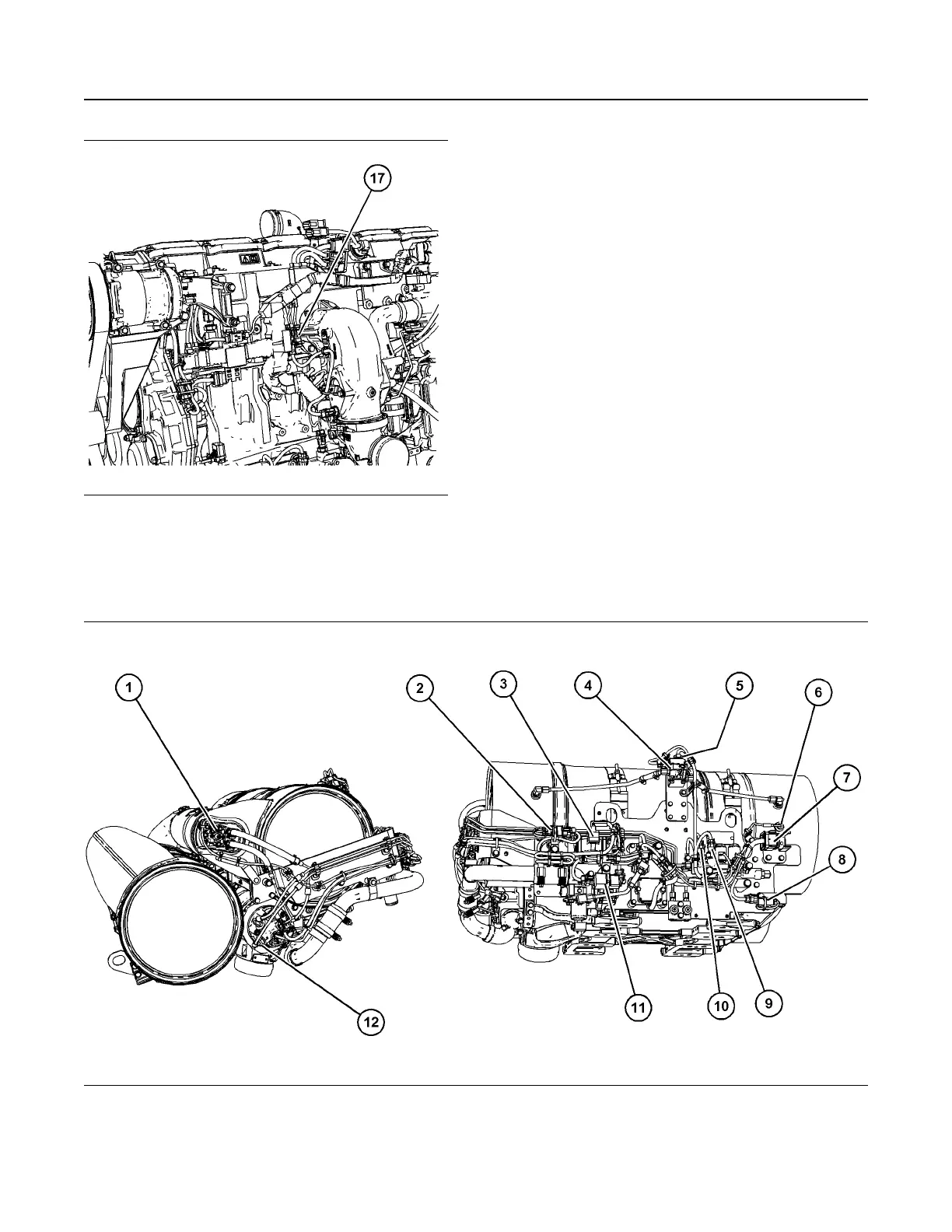

Illustration 32 g06130480
Typical example
(17) Location for Top Dead Center (TDC) probe
Aftertreatment System
Illustration 33 g06048751
Typical example
(1) Diesel Exhaust Fluid (DEF) injector
(2) Temperature sensor
(3) Coil for spark plug
M0076814-03 35
Operation Section
Sensors and Electrical Components
