(4) Diesel Particulate Filter (DPF) differential
pressure sensor
(5) DPF pressure sensor
(6) Temperature sender
(7) 40-Pin connector
(8) Selective Catalytic Reduction (SCR)
temperature sensor
(9) Fuel pilot pressure sensor
(10) Fuel main pressure sensor
(11) Identification Module
(12) Temperature sender for Aftertreatment
Regeneration Device (ARD)
Pump Electronic Tank Unit (PETU)

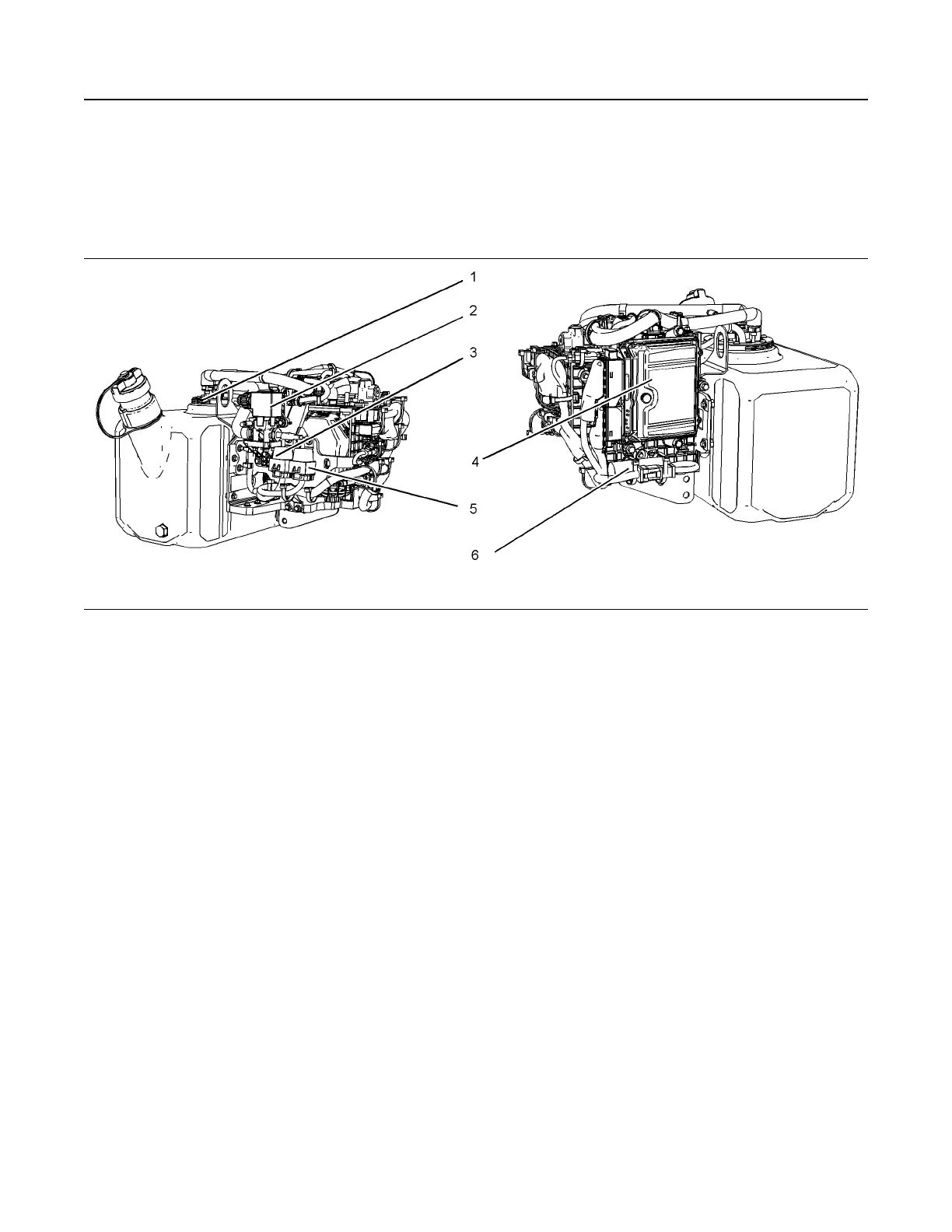

Illustration 34 g06130516
Typical example
(1) DEF header
(2) Coolant Diverter Valve
(3) Customer Connections
(4) Dosing Control Module
(5) Relays
(6) Voltage Limiting Protection Module
36 M0076814-03
Operation Section
Sensors and Electrical Components
