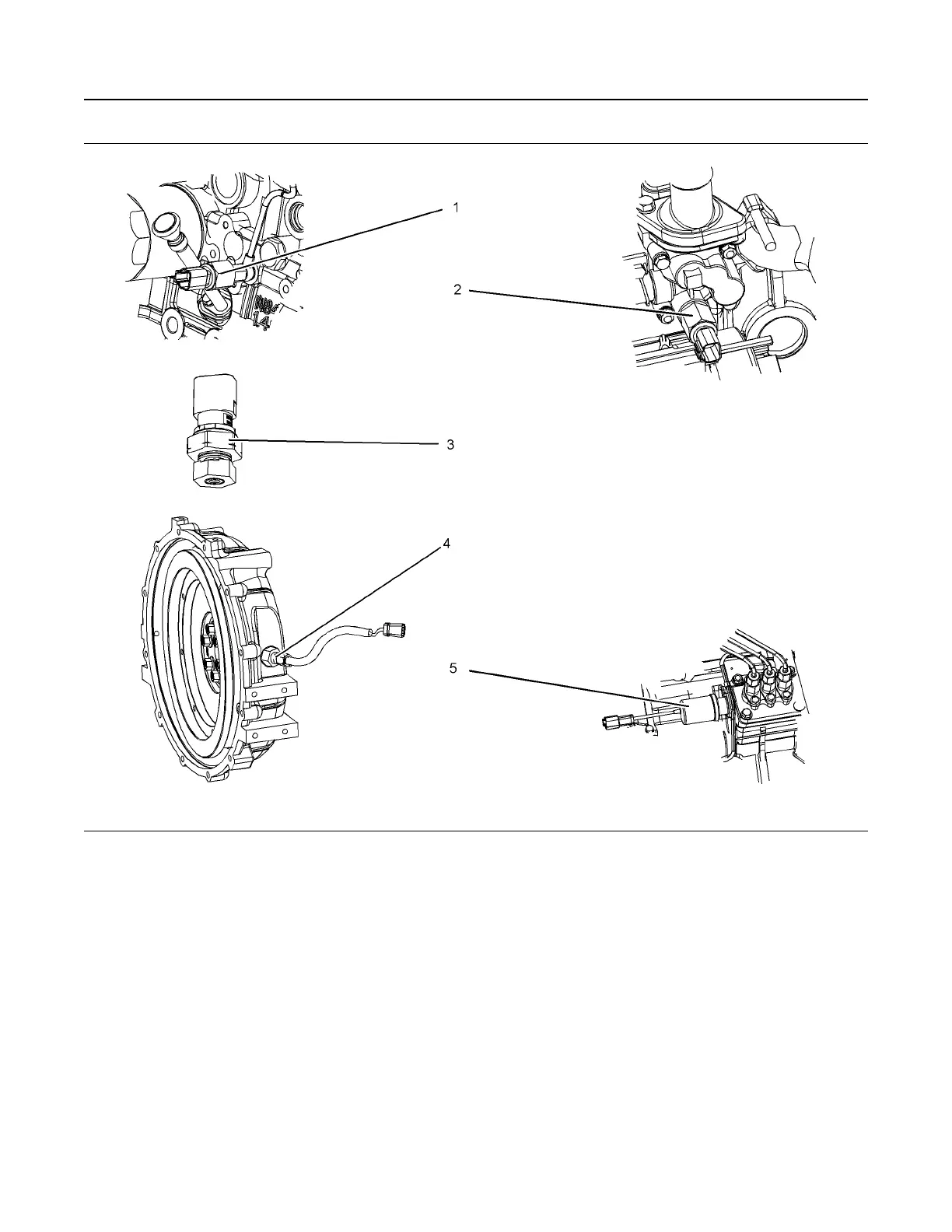

Illustration 30 g03381125
Typical examples
(1) Oil pressure sensor
(2) Coolant temperature sensor
(3) Atmosphere pressure sensor
(Barometric pressure sensor)
(4) Speed sensor
(5) Throttle actuator or stop solenoid
Note: Due to individual applications the atmosphere
pressure sensor (3) may appear different from the
illustration.
Electrical components install on the 402F-05, 403F-
07, 403F-11, and the 403F-15 engines:
• Alternator
• Starting motor
• Glow plugs
• Electronic control governor (Location will depend
on the application)
• Electric fuel pump
