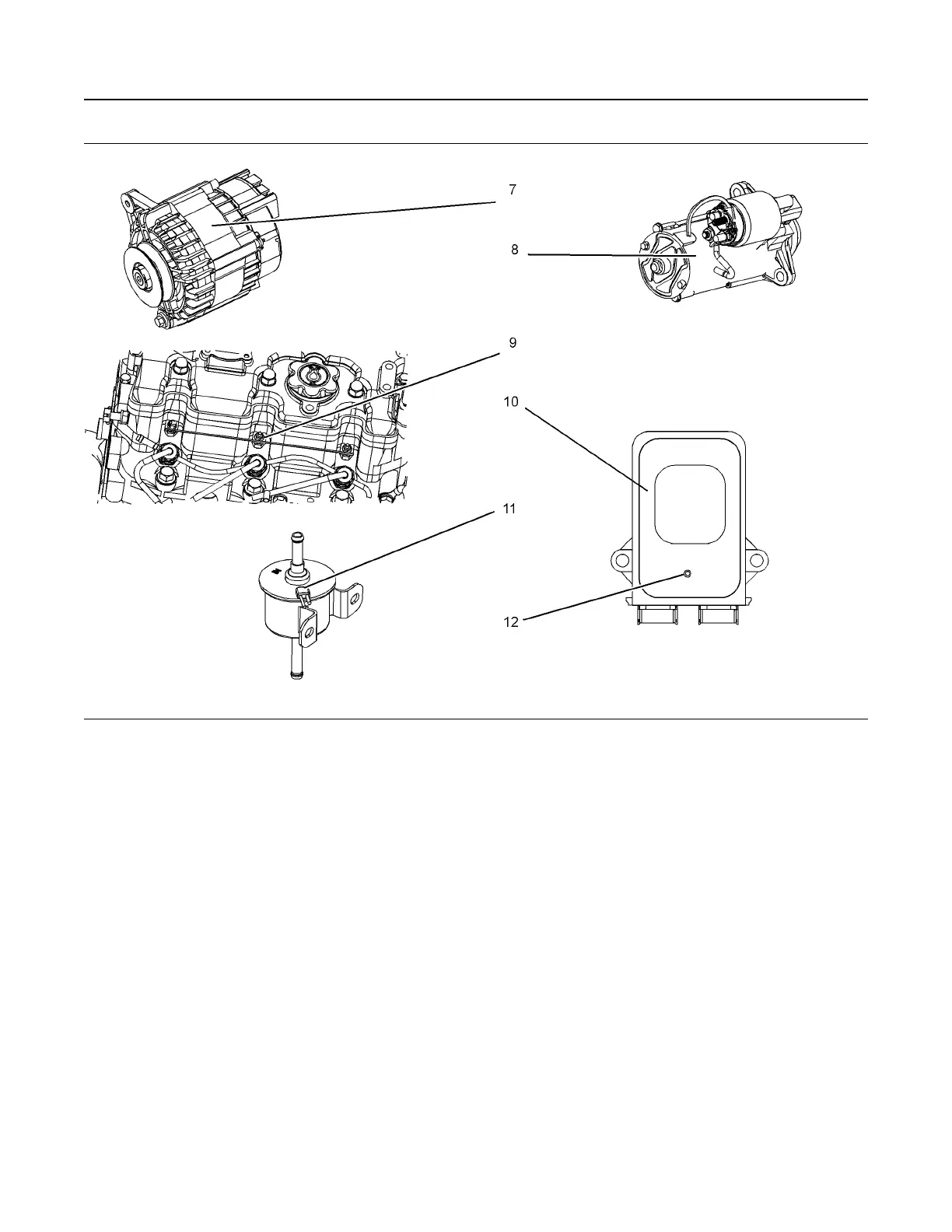

Illustration 31 g03381126
Typical examples
(7) Alternator
(8) Starting motor
(9) Glow plugs
(10) Electronic control model (Controller)
(11) Fuel pump
(12) Multi-function lamp
When the keyswitch is in the OFF position, the multi-
function lamp will not be illuminated. With the
keyswitch in the ON position the multi-function lamp
will flash once. The flash will indicate that the system
is powered and ready for operation.
The multi-function lamp can be used as a diagnostic
lamp. For information as a diagnostic lamp refer to
this Operation and Maintenance Manual, “Diagnostic
Lamp”.
SEBU9064-08
35
Operation Section
Sensors and Electrical Components
