904J-E28T and 904J-E28TA Industrial
Engines

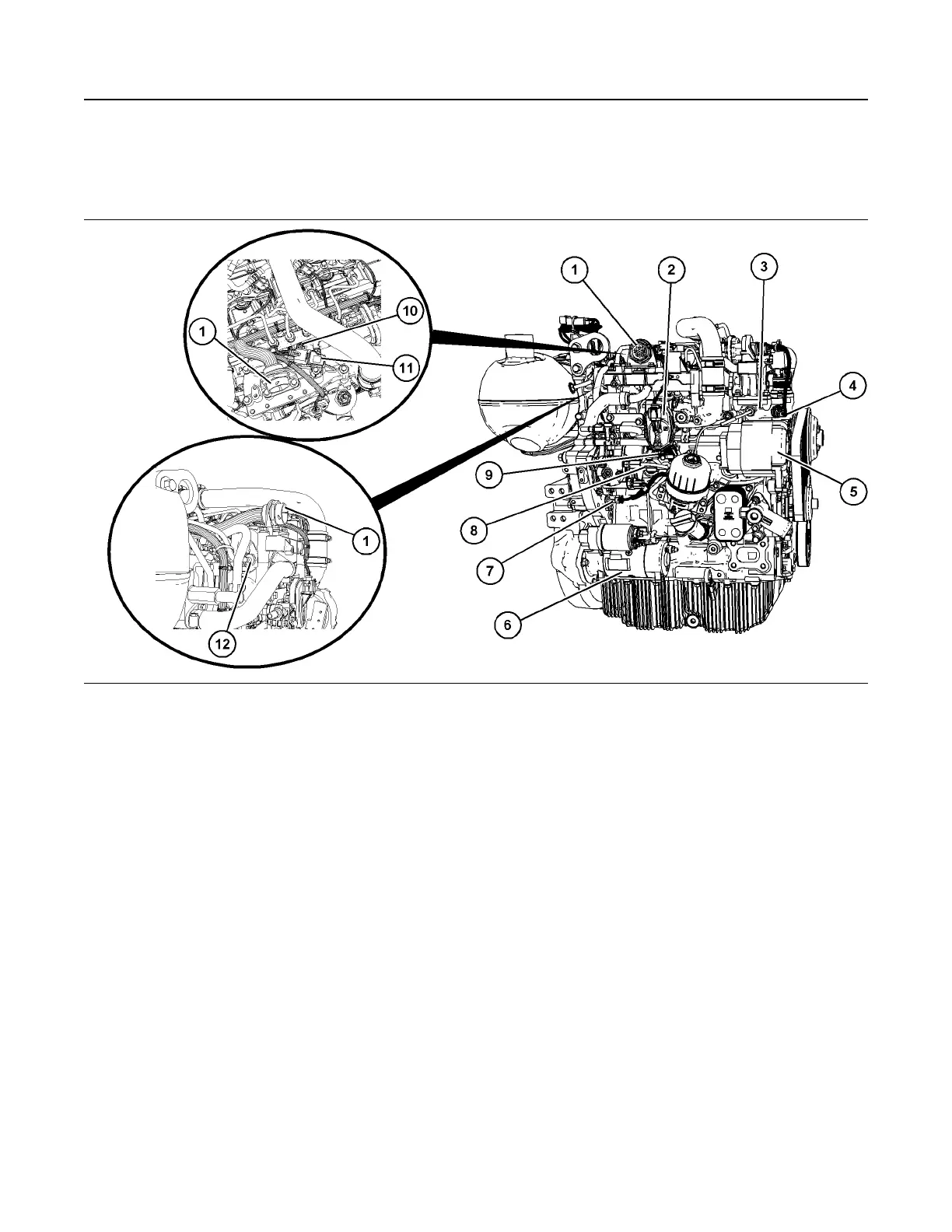

Illustration 43 g06481405
Typical example
(1) Engine 47-pin interface connector
(2) Inlet throttle valve
(3) Temperature sensor pre-NRS valve
(4) Coolant temperature sensor
(5) Alternator
(6) Starting motor
(7) Camshaft speed/timing sensor
(8) Fuel temperature sensor
(9) Control valve for high-pressure fuel
pump
(10) Inlet Manifold Temperature Sensor
(11) Inlet Manifold Pressure Sensor
(12) Temperature sensor post NRS valve
M0092609-05 53
