904J-E28T and 904J-E28TA Off Engine Sensors and Electrical Components

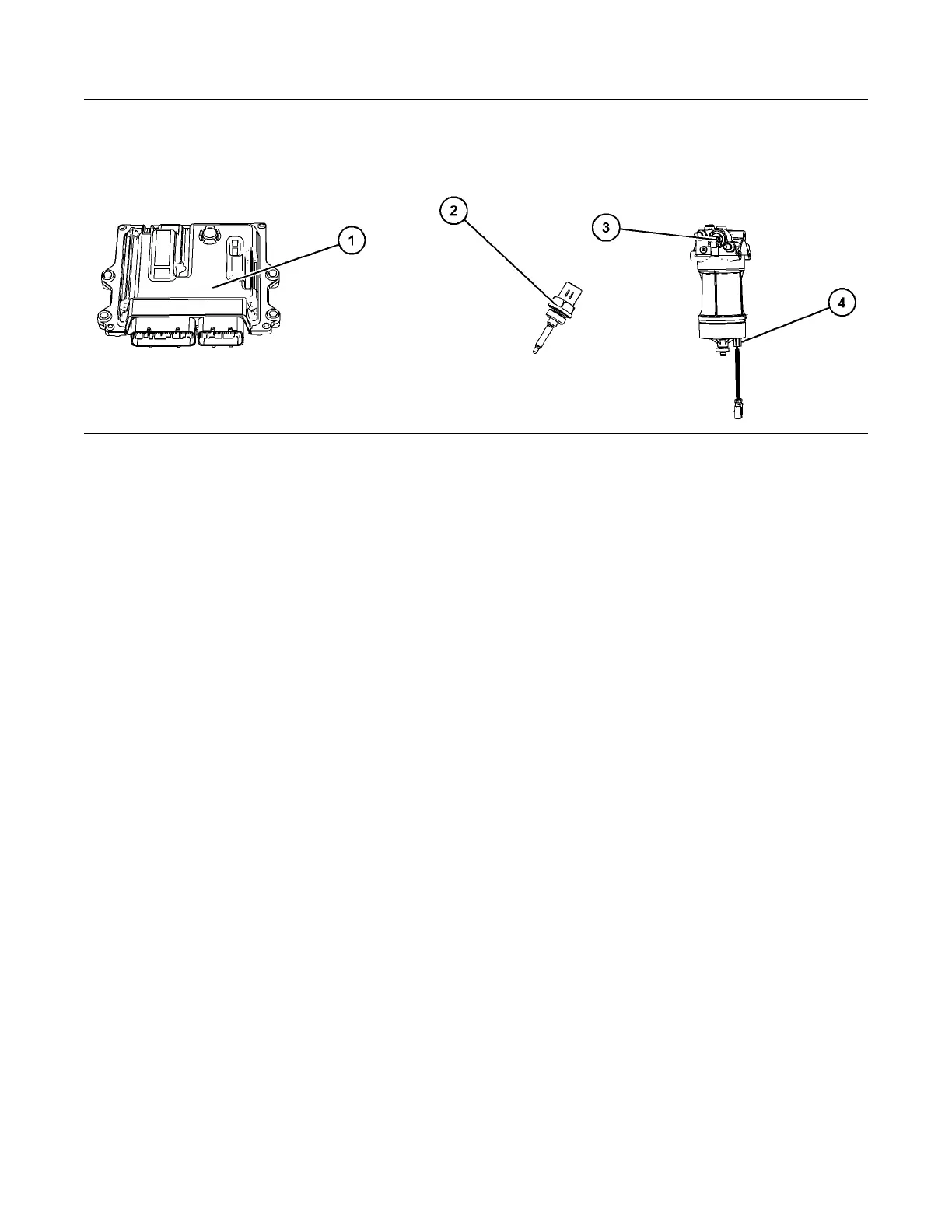

Illustration 46 g06481423
Typical example
(1) ECM (2) Air intake temperature sensor (Air
Cleaner), If equipped
(3) Priming pump
(4) Water in fuel switch
56 M0092609-05
Operation Section
Sensors and Electrical Components
