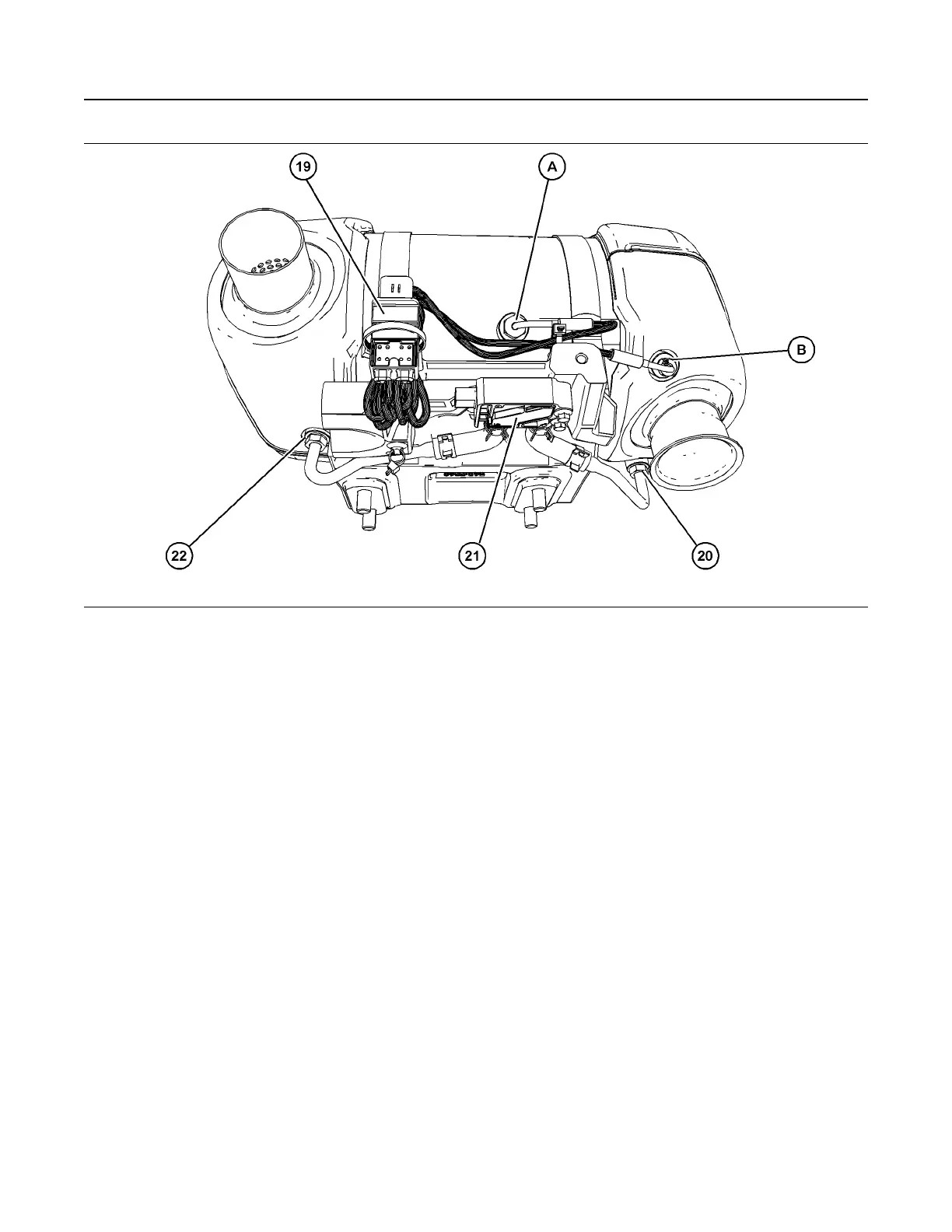

Illustration 45 g06481414
Typical example
(19) Temperature sensor controller with 2
probes across aftertreatment (in
transport position)
(20) Tube assembly for Differential pressure
(21) DPF Differential pressure sensor
(22) Tube assembly for Differential pressure
(A) DPF temperature probe
(B) DOC temperature probe
M0092609-05
55
Operation Section
Sensors and Electrical Components
